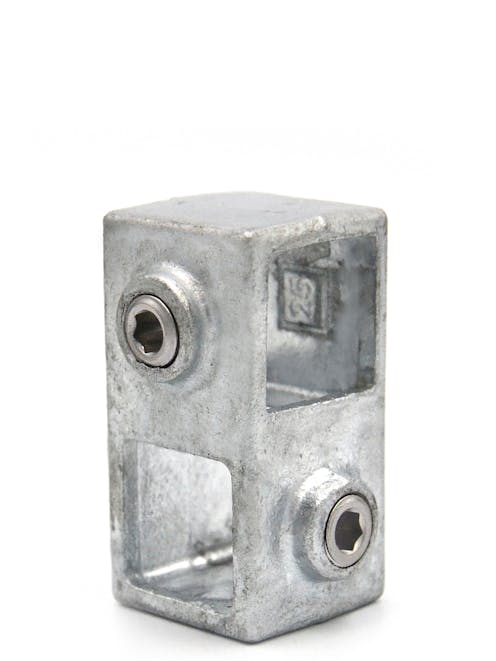

165 Combination Socket (Square 25 x 25)

£7.00
(ex. VAT)

A combination fitting designed for use in the construction of racking systems. The fitting enables the connection of a vertical upright at 90° to 2 horizontal rails, 1 being the tie rail, the other being the load rail. On pallet racking the upright normally has the load rail on the inside, whilst for shelved racking the upright normally has the load rail on the outside.

Specification

Pipeclamp Component
Square System 25x25
Pipeclamp Size
25x25 Square
Material Type
Mild Steel
Finish
Galvanised
Multiple Joint
Yes
Rail diameter
25mm x 25mm sq.
