Bases and Brackets

Viewing 24 of 34.
grid
list
£1.14
(ex. VAT)

M12 x 100 Galvanised Through Bolts. Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Sold in pairs.

£1.26
(ex. VAT)

M12 x 60 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.

£1.26
(ex. VAT)

M12 x 75 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.

£1.50
(ex. VAT)

M12 x 100 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.

From £2.18
(ex. VAT)

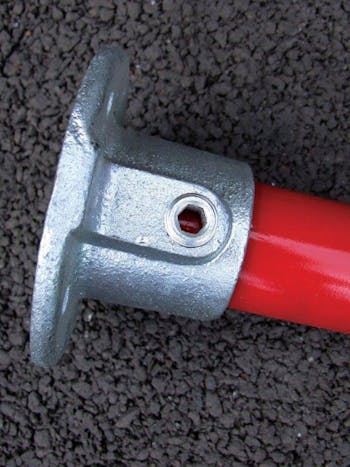

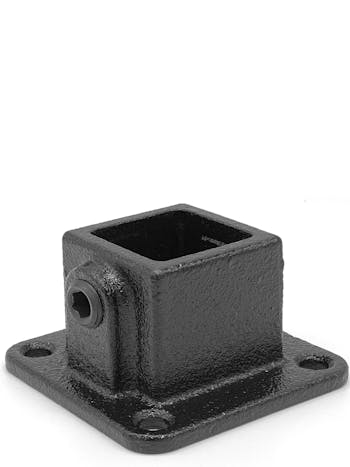

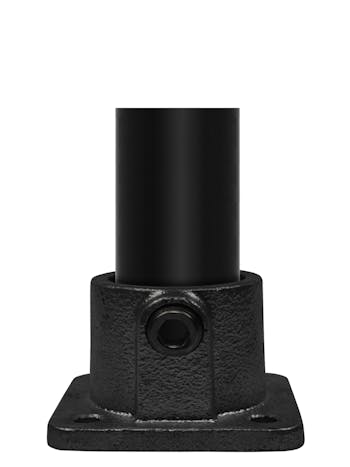

With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.

From £2.84
(ex. VAT)

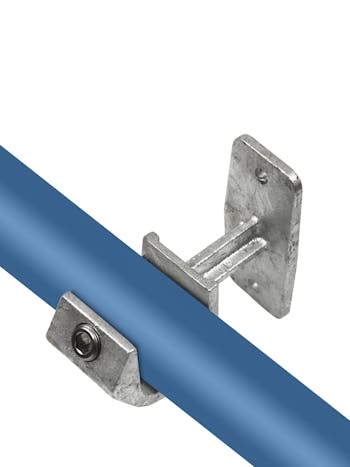

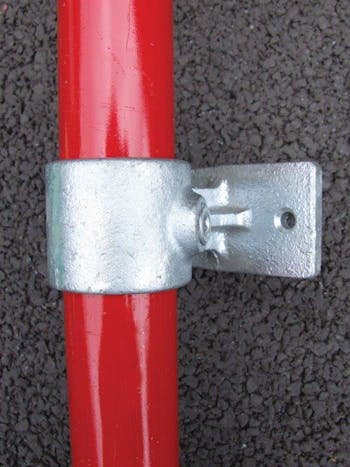

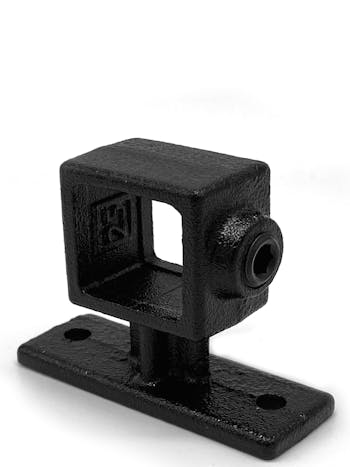

Wall mounting bracket for handrails. Can also be used to tie back structures to wall or to hold kicking plates on a guardrail. This Key Clamp fitting has countersunk holes and is not recommended as a structural fixing. This fitting has no ability to join tubes.
From £3.50
(ex. VAT)

This OPEN version of the 143 type fitting is suitable as rail holder where the tube can be removed easily and quickly.

From £3.50
(ex. VAT)

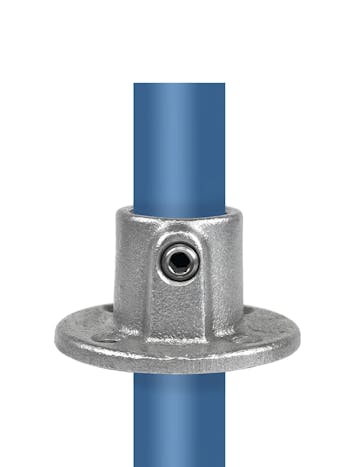

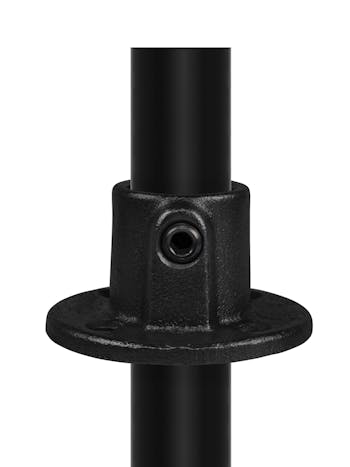

This THROUGH version of the 131 type fitting is suitable for constructions where the pipe has to run through. Suitable for the use of e.g. intermediate shelves.

From £3.60
(ex. VAT)

This CLOSED version of the 143 type fitting is suitable as rail holder where the tube can be removed easily and quickly.

From £3.95
(ex. VAT)

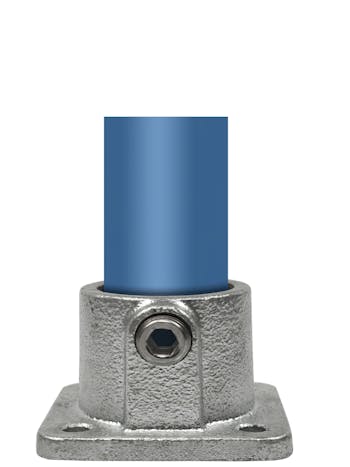

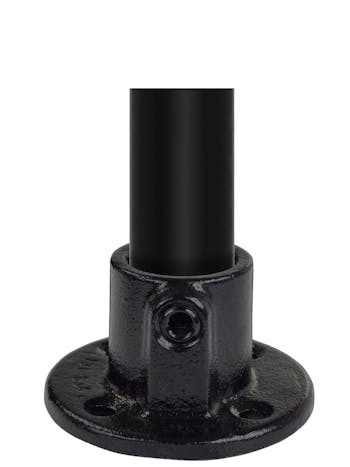

With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.

From £4.38
(ex. VAT)

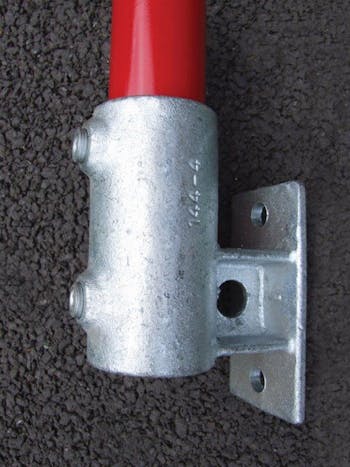

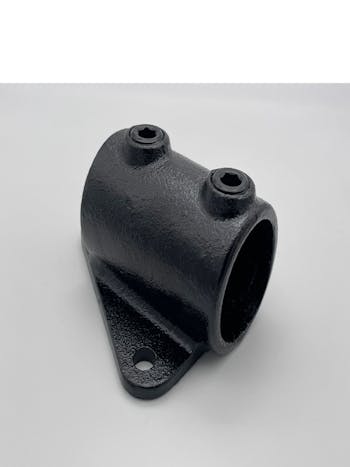

Key Clamp Structural flush side palm base fixing for fixing guardrailing to wall steps or ramps etc. The flush design enables posts to be tight to the structure. The tube is unable to pass through the fitting. Should this be required then the base must be reamed out. If the base is reamed out the bottom fixing will become redundant.
From £4.48
(ex. VAT)

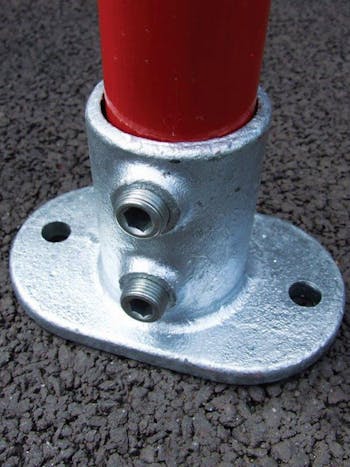

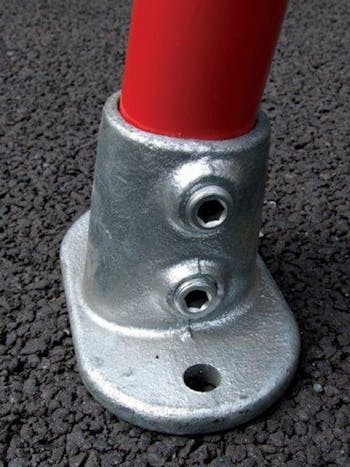

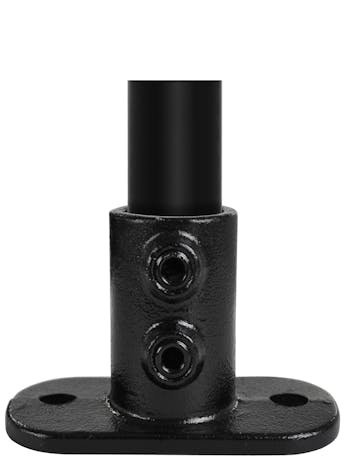

A structural base plate for all aspects of vertical post
support. This key clamp fitting when used as a base plate for guardrailing should always be positioned with the holes across the line of the guardrail to give maximum strength. The holes in the base plate are large enough to enable the use of mechanical or chemical anchor fixings.

From £4.48
(ex. VAT)

With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.

From £4.48
(ex. VAT)

This THROUGH version of the 131 type fitting is suitable for constructions where the pipe has to run through. Suitable for the use of e.g. intermediate shelves.

From £4.60
(ex. VAT)

Wall mounting bracket for handrails. Can also be used to tie back structures to wall or to hold kicking plates on a guardrail. This Key Clamp fitting has countersunk holes and is not recommended as a structural fixing. This fitting has no ability to join tubes.

From £4.60
(ex. VAT)

With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.

From £5.71
(ex. VAT)

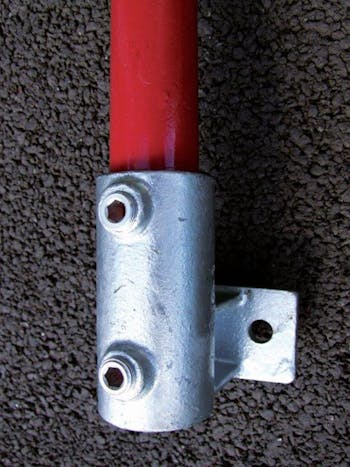

Key Clamp Structural offset side palm base fixing for fixing guardrailing to walls, steps, ramps, etc. The tube is unable to pass through this fitting as supplied, should this be required then the base must be reamed out. Access to the top fixing is restricted. It is recommended that a threaded stud is fixed first with a maximum projection of 25mm.
From £6.78
(ex. VAT)

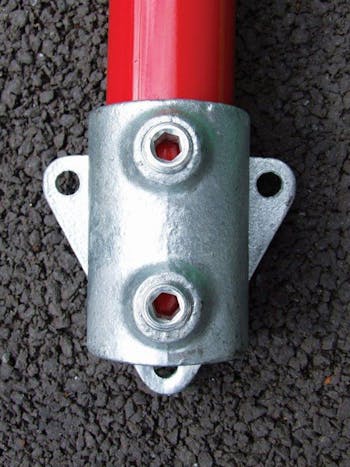

This fitting is designed for palm fixing guardrailing and balustrading to walls, parapets, steps and ramps.
From £6.97
(ex. VAT)

A structural base plate for all level aspects of vertical post support. This key clamp fitting when used as a base plate for guardrailing should always be positioned with the holes across the line of the guardrail to give maximum strength. The holes in the base plate are large enough to enable the use of mechanical or chemical anchor fixings.

£6.98
(ex. VAT)

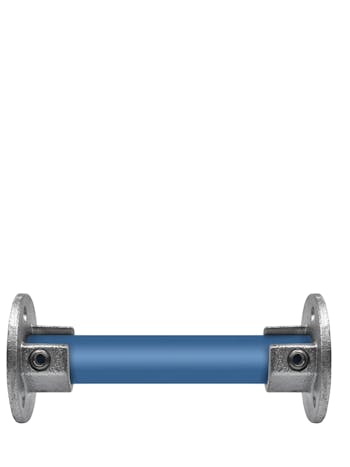

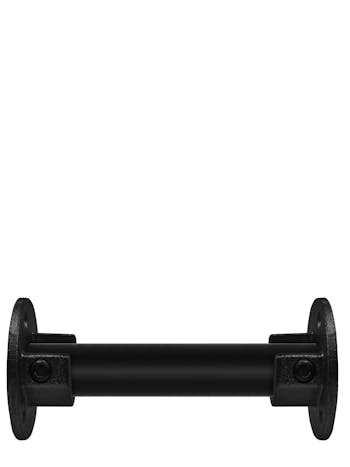

This INLAY version of the 131 type fitting is excellantly suitable as rail holder. Supplied as a set (left and right version). After you have placed the round wall plates, you can simply insert the tube. Also suitable for temporary removal of a passageway, where the tube can be removed easily and quickly.

From £7.10
(ex. VAT)
An adjustable structural base fitting for the vertical. The design of this Key Clamp fitting will only allow it to be installed in the correct plane. For correct orientation see details below.
£7.48
(ex. VAT)

This INLAY version of the 131 type fitting is excellantly suitable as rail holder. Supplied as a set (left and right version). After you have placed the round wall plates, you can simply insert the tube. Also suitable for temporary removal of a passageway, where the tube can be removed easily and quickly.

From £8.35
(ex. VAT)

With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.

£9.50
(ex. VAT)

Key Clamp Structural flush side palm base fixing for fixing guardrailing to wall steps or ramps etc. The flush design enables posts to be tight to the structure. The tube is unable to pass through the fitting. Should this be required then the base must be reamed out. If the base is reamed out the bottom fixing will become redundant.
