Miscellaneous

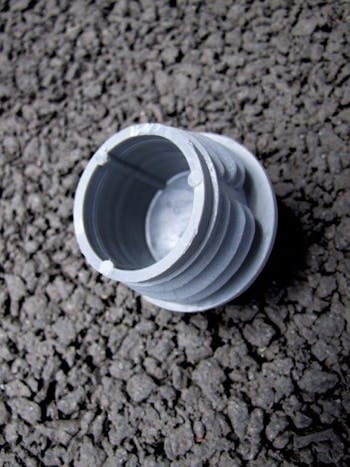

A plastic stop end for use in the end of tubes. This stop end cap can be used in either medium or heavy gauge tube. This is only a friction fit and for a more permanent fix an adhesive is recommended.

Sizes as follows - these are the outside diameters of the tube they are fitting into.

Size 1 = 26.9mm

Size 2 = 33.7mm

Size 3 = 42.4mm

Size 4 = 48.3mm

Size 5 = 60.3mm

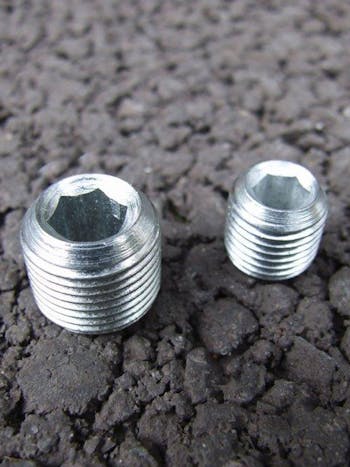

Electro plated case hardened grubscrews. These grubscrews are supplied pre fitted into the fittings.

M12 x 100 Galvanised Through Bolts. Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Sold in pairs.

M12 x 60 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.

M12 x 75 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.

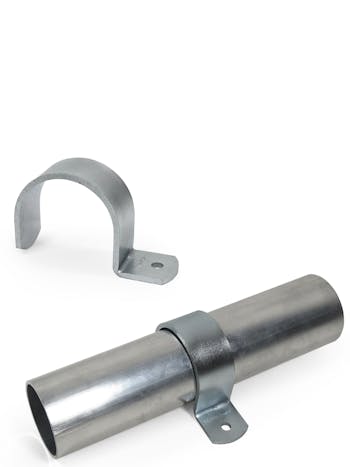

Often used for mounting boards, table or stool tops practically flush with tubes. Fixing holes are 6mm diameter. The tube cannot be joined within the fitting.

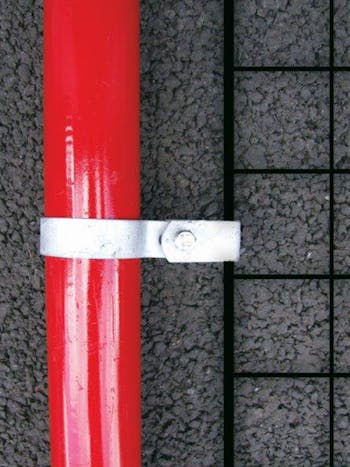

Single location weldmesh panel clip. The slotted design of the panel clip enables adjustment in the location of the mesh panels. Supplied with M6 x 30mm long nut and bolt. This fitting can also be used to locate other materials up to 10mm thick provided the safety saddle is removed.

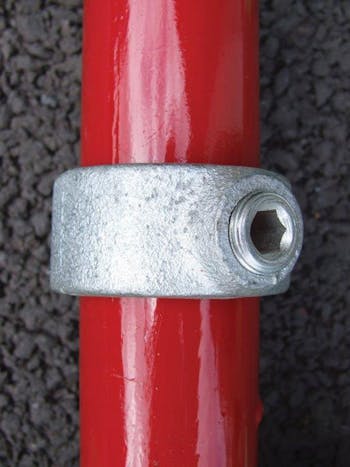

A locking collar used as extra support for a Pipeclamp fitting on structures where the slip load on the grubscrew may be exceeded i.e. racking. Can also be used to support a Key Clamp fitting that is required to be left undone. i.e. a gate hinge.

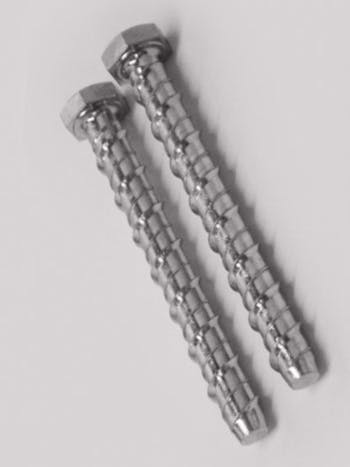

M12 x 100 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.

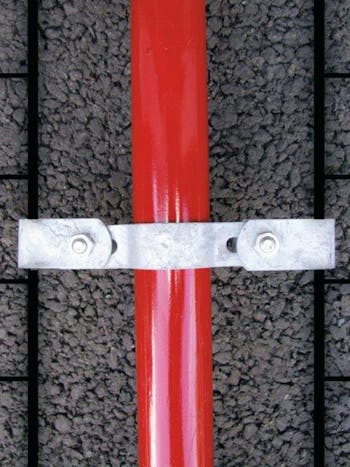

Double location weldmesh panel clip. The slotted design of the panel clip enables adjustment in the location of the mesh panels. Supplied with M6 x 30mm long nut and bolt. This fitting can also be used to locate other materials up to 10mm thick provided the safety saddle is removed.

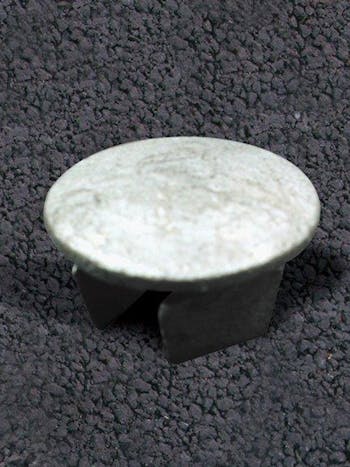

This Key Clamp fitting is a metal stop end cap for sealing the open ends of tubes. This Key Clamp fitting can be used only be used on medium (3.2) weight tube. This Key Clamp fitting is a drive in fit that is difficult to remove without the need for adhesive. For a plastic alternative use the Pipeclamp fitting 133.

Hexagonal key. The allen key is the only tool required to tighten up a Pipeclamp fitting. The use of the dual ratchet Pipeclamp reference 302 is recommended to achieve the required torque.

Chain hook. Used to locate chains across openings. Not ideal for permanent chain location. Recommended that one end of the chain is fixed using a Key Clamp fitting reference 173M and held in place with a nut and bolt.

The Key Clamp fitting is a metal stop end for sealing the open ends of tubes. This Key Clamp fitting is a drive in fit that is difficult to remove without the need for adhesive. For a plastic alternative use Pipeclamp fitting 133.

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

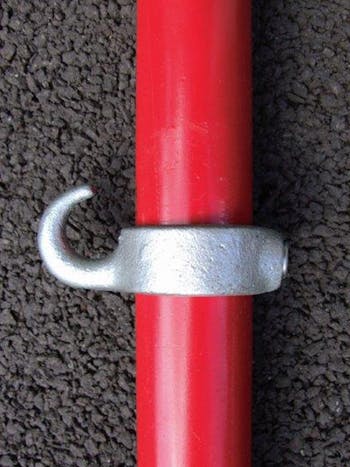

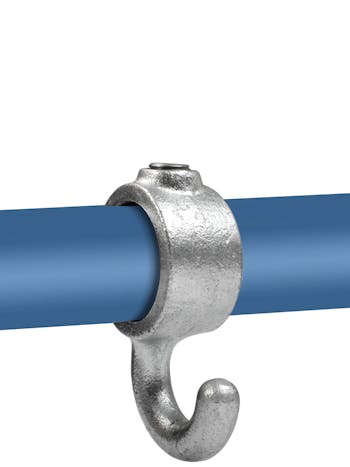

Hook 90°. Similar to tube coupling type 182, but better suited for making coat hangers and the like.

Chain hook. Used to locate chains across openings. Not ideal for permanent chain location. Recommended that one end of the chain is fixed using a Key Clamp and held in place with a nut and bolt.

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

Chain hook. Used to locate chains across openings. Not ideal for permanent chain location. Recommended that one end of the chain is fixed using a Key Clamp and held in place with a nut and bolt.

Hook 90°. Similar to tube coupling type 182, but better suited for making coat hangers and the like.

Key Clamp Single male fitting with only 1 lug.

Female section of a 2 part gate hinge. Used in conjunction with Key Clamp fitting reference 140.
