Multiple Joints

Viewing 20 of 20.
grid
list
From £2.24
(ex. VAT)
Offset add on tee. Used for making additions to, upgrading or modifying an existing structure without having the need to dismantle part or all of that structure.
From £2.53
(ex. VAT)

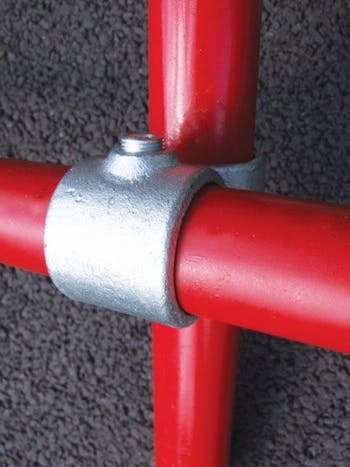

A 90° offset crossover fitting. The tube is unable to be jointed within this fitting. Ideal applications are for racking systems or offset guardrail. Where dimension ‘D’ indicates two figures, the first figure refers to tube ‘A’, second refers to tube ‘B’.
From £2.71
(ex. VAT)
Key Clamp fitting typical use is on straight and level guardrail for connecting the mid/lower rail to the vertical at a 90 corner. Can also be used in a similar way on other rectangular structures (Kee Klamp compatible 21).
From £2.84
(ex. VAT)

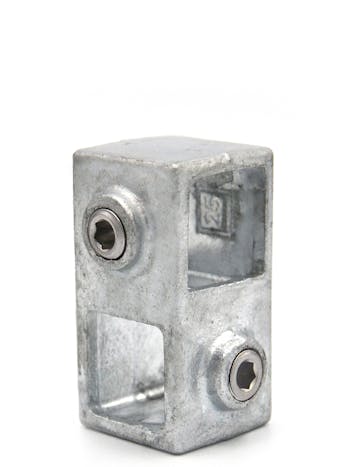

A combination fitting designed for use in the construction of racking systems. The fitting enables the connection of a vertical upright at 90° to 2 horizontal rails, 1 being the tie rail, the other being the load rail. On pallet racking the upright normally has the load rail on the inside, whilst for shelved racking the upright normally has the load rail on the outside.
From £2.90
(ex. VAT)
A Key Clamp 90 joint between a vertical and two horizontals. Typical use on straight and level guardrail to connect the mid/lower rails to the upright (Kee Klamp compatible 26). The vertical must remain continuous with cross rails cut. Normally used in conjunction with the Key Clamp fitting 104 Long Tee.
From £3.36
(ex. VAT)

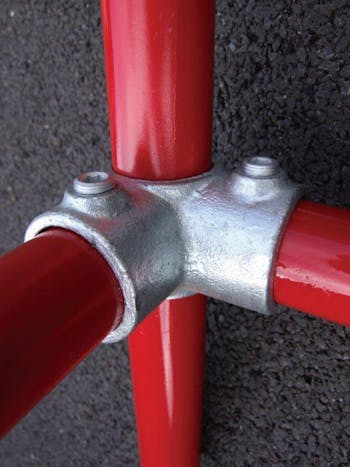

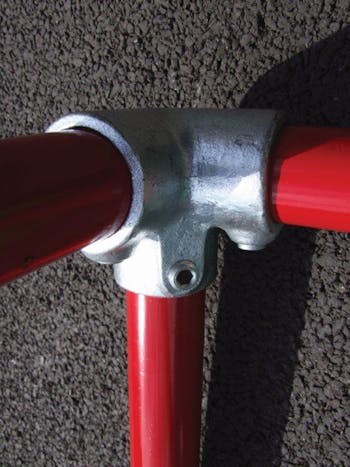

A 3 way enclosed 90 corner joint. Typical use is on straight and level guardrail at a 90 corner where an upright is in position. This Key Klamp fitting can also be used to create enclosed corner joints in other square structures such as benches etc.

£3.45
(ex. VAT)

A 90° offset crossover fitting. The tube is unable to be jointed within this fitting. Ideal applications are for racking systems or offset guardrail. Where dimension ‘D’ indicates two figures, the first figure refers to tube ‘A’, second refers to tube ‘B’.

£3.45
(ex. VAT)

A 90° offset crossover fitting. The tube is unable to be jointed within this fitting. Ideal applications are for racking systems or offset guardrail. Where dimension ‘D’ indicates two figures, the first figure refers to tube ‘A’, second refers to tube ‘B’.

From £3.53
(ex. VAT)
3 way tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.
£3.75
(ex. VAT)

Offset add on tee. Used for making additions to, upgrading or modifying an existing structure without having the need to dismantle part or all of that structure.

From £4.56
(ex. VAT)

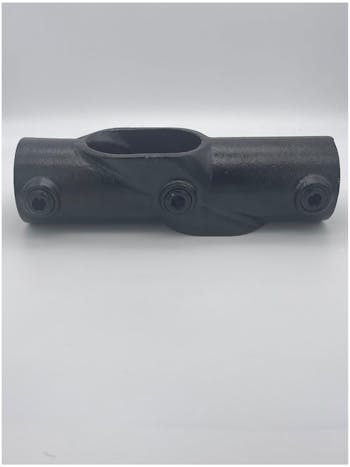

An adjustable cross for connecting tubes between mid/lower rails and the vertical on ramps or shallow gradients. The vertical must remain continuous with the cross rails being cut.
From £4.90
(ex. VAT)
A 4 way cross that enables the vertical to pass through the centre of the fitting with the 4 horizontal tubes joining at 90° to each other. Ideal for structures with multiple verticals. The vertical must remain continuous with the cross rails being cut.
£5.16
(ex. VAT)

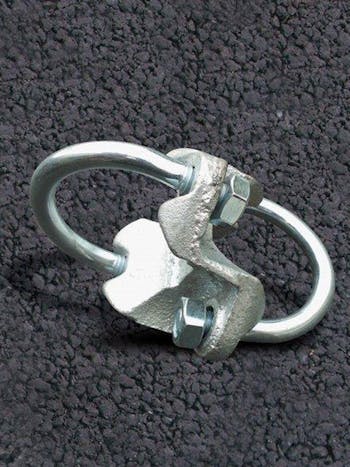

A retro fit 90° offset crossover fitting. The tube is unable to be jointed within this fitting. Ideal applications are for racking systems or offset guardrail. Where dimension ‘D’ indicates two figures, the first figure refers to tube ‘A’, second refers to tube ‘B’.
£7.00
(ex. VAT)

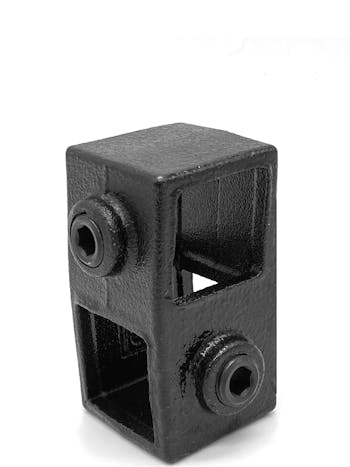

A combination fitting designed for use in the construction of racking systems. The fitting enables the connection of a vertical upright at 90° to 2 horizontal rails, 1 being the tie rail, the other being the load rail. On pallet racking the upright normally has the load rail on the inside, whilst for shelved racking the upright normally has the load rail on the outside.

£7.00
(ex. VAT)

A combination fitting designed for use in the construction of racking systems. The fitting enables the connection of a vertical upright at 90° to 2 horizontal rails, 1 being the tie rail, the other being the load rail. On pallet racking the upright normally has the load rail on the inside, whilst for shelved racking the upright normally has the load rail on the outside.

From £7.39
(ex. VAT)
Freely adjustable cross between 30° and 45°. Typical use is as a cross connection on angled mid/lower rails on steeper slopes or stairs with the upright remaining vertical. The upright must remain continuous with the cross rails being cut. Not recommended for use on the top of the vertical.
£8.28
(ex. VAT)
An adjustable cross for connecting tubes between mid/lower rails and the vertical staircases (11°- 29°) and larger gradients. The vertical must remain continuous with the cross rails being cut.
£9.25
(ex. VAT)

Freely adjustable cross between 30° and 45°. Typical use is as a cross connection on angled mid/lower rails on steeper slopes or stairs with the upright remaining vertical. The upright must remain continuous with the cross rails being cut. Not recommended for use on the top of the vertical.

£10.32
(ex. VAT)

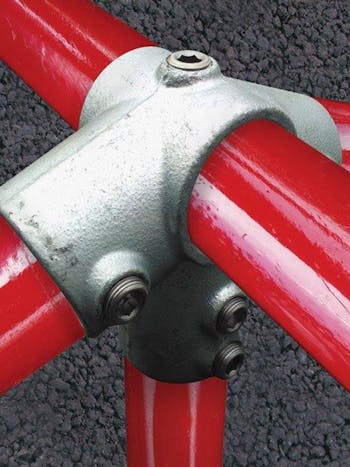

Usually used to form roof structures in conjunction with type 185, with an angle of 27½°. The ridge tube running longitudinally with the roof may be joined within the fitting (there are two setscrews acting on this tube, which are obscured in the photo).
£12.44
(ex. VAT)

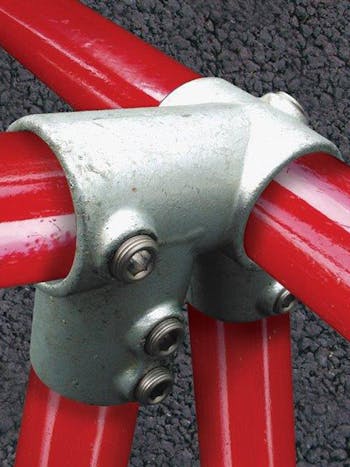

Usually used to form roof structures in conjunction with type 191, with an angle of 27½°. The horizontal eaves tube running longitudinally with the roof may be joined within the fitting (there are two setscrews acting on this tube, which are obscured in the photo).
