Tees

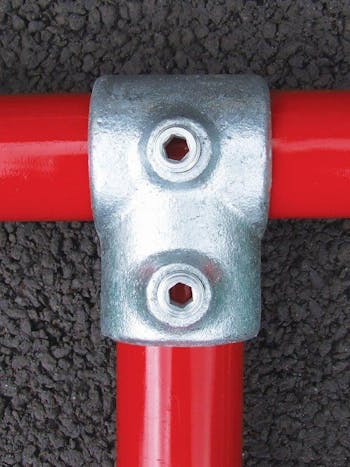

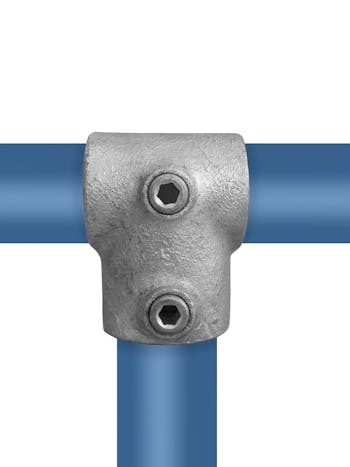

A 90 deg. tee connection between two tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail or end/mid rail to the vertical (Kee Klamp compatible 10). This Key Clamp fitting cannot be used to join tubes in the top of the short tee. For this the Key Clamp fitting 104 Long Tee should be used.
A 90 deg. tee connection between two tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail or end/mid rail to the vertical. This Key Clamp fitting cannot be used to join tubes in the top of the short tee.
A 90° offset crossover fitting. The tube is unable to be jointed within this fitting. Ideal applications are for racking systems or offset guardrail. Where dimension ‘D’ indicates two figures, the first figure refers to tube ‘A’, second refers to tube ‘B’.

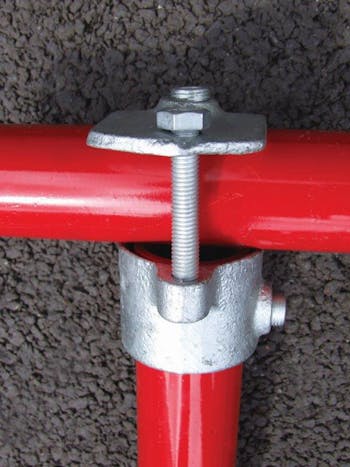

Inline Add on Tee. Used for making additions to, upgrading or modifying an existing structure without having having the need to dismantle part or all of that structure.

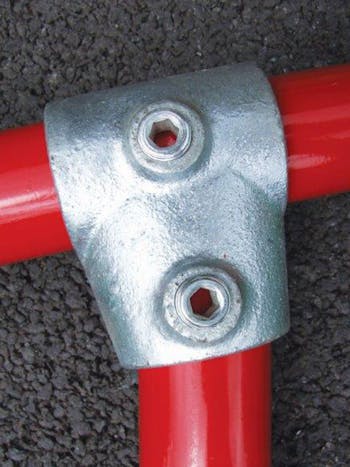

Key Clamp fitting typical use is on straight and level guardrail for connecting the mid/lower rail to the vertical at a 90 corner.
Offset add on tee. Used for making additions to, upgrading or modifying an existing structure without having the need to dismantle part or all of that structure.

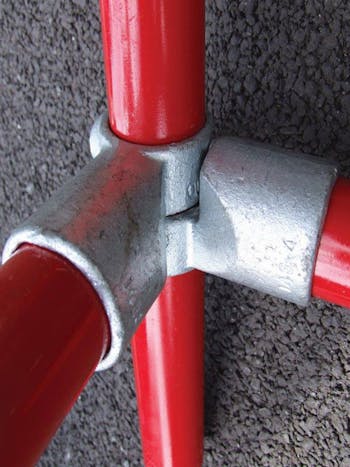

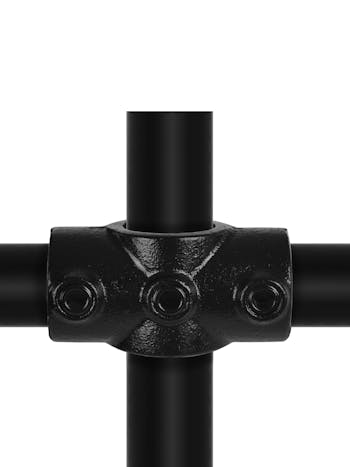

A Key Clamp 90 joint between a vertical and two horizontals. Typical use on straight and level guardrail to connect the mid/lower rails to the upright. The vertical must remain continuous with cross rails cut.

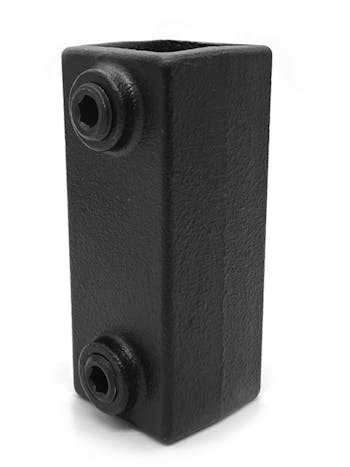

An inline external tube connector for joining two tubes of the same diameter. Supplied in a Electrophoretic Coated finish.

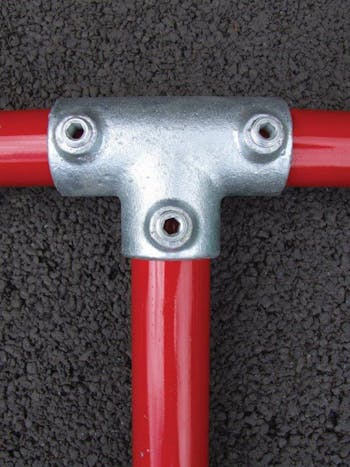

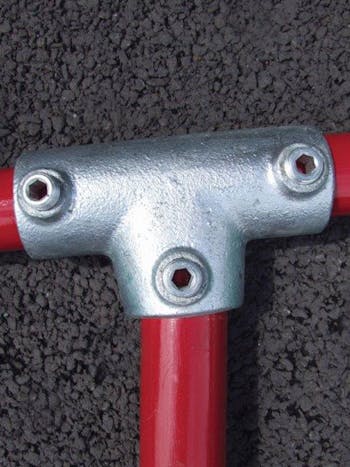

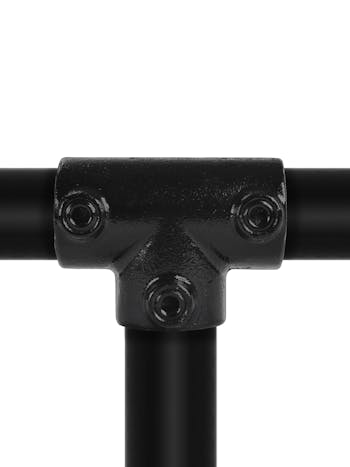

A 90 deg. tee connection between 2 tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail. This Key Clamp fitting can be used to join tubes in the top of the twin grubscrew long tee.
Inline Add on Tee. Used for making additions to, upgrading or modifying an existing structure without having having the need to dismantle part or all of that structure.

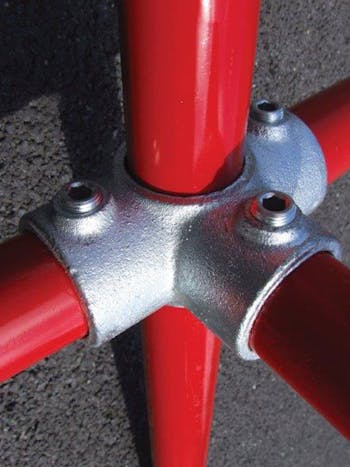

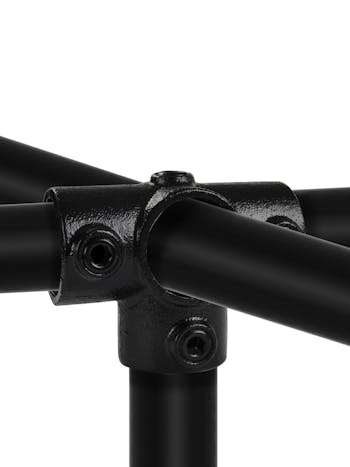

3 way tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.
A Key Clamp 90 joint between a vertical and two horizontals. Typical use on straight and level guardrail to connect the mid/lower rails to the upright. The vertical must remain continuous with cross rails cut.
A 90 deg. tee connection between two tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail or end/mid rail to the vertical (Kee Klamp compatible 10). This Key Clamp fitting cannot be used to join tubes in the top of the short tee. For this the Key Clamp fitting 104 Long Tee should be used.
Key Clamp fitting typical use is on straight and level guardrail for connecting the mid/lower rail to the vertical at a 90 corner.
3 way tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.
