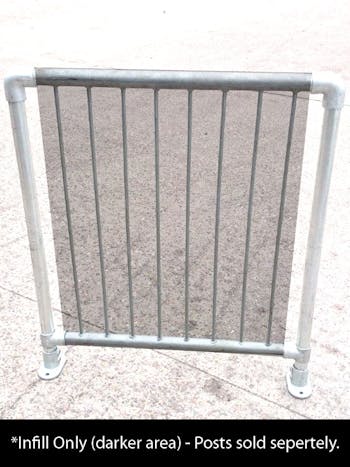

Pedestrian barrier fencing infill panels that fully integrate with the key clamp system, providing a rapid construction of pedestrian control structures. Top and bottom rails are 40NB (48.3mm od) tube with 12mm solid vertical bars.
The barriers meet the infill requirements of Sections 2.4.1 and 2.4.2 of BS 7818:1995 (Pedestrian Restraint Systems in Metal).
Standard Sizes: FIP1 = 900mm wide x 1000mm high FIP2 = 1200mm wide x 1000mm high FIP3 = 1500mm wide x 1000mm high
Custom sizes are also available on request.
Posts are shown for illustration purposes only.

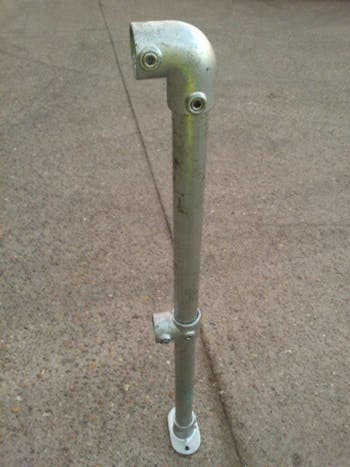

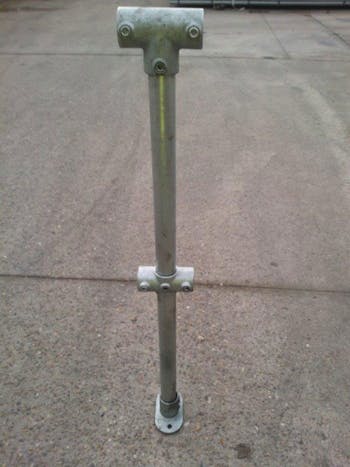

Pipeclamp pre-assembled posts can be bought separately.
