Pipeclamp Components
DDA Ramp Handrail Side Mount or Slope Mounted Handrail Kit with MID RAIL. Available as standard in tube size 42.4mm (48.3mm upon request). Tube for upright posts supplied 1070mm long to suit side mounting or flat base mounting (so may require cutting back, we can do in-house if required). Tube for rails supplied as standard length's either 1070mm,1600mm, 2100mm, 3200mm, 4800mm or 6400mm (other lengths available if required).
A plastic stop end for use in the end of tubes. This stop end cap can be used in either medium or heavy gauge tube. This is only a friction fit and for a more permanent fix an adhesive is recommended.
Sizes as follows - these are the outside diameters of the tube they are fitting into.
Size 1 = 26.9mm
Size 2 = 33.7mm
Size 3 = 42.4mm
Size 4 = 48.3mm
Size 5 = 60.3mm

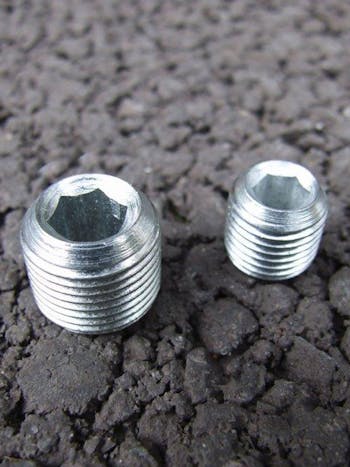

Electro plated case hardened grubscrews. These grubscrews are supplied pre fitted into the fittings.
A plastic stop end for use in the end of tubes. This stop end cap can be used in either medium or heavy gauge tube. This is only a friction fit and for a more permanent fix an adhesive is recommended.

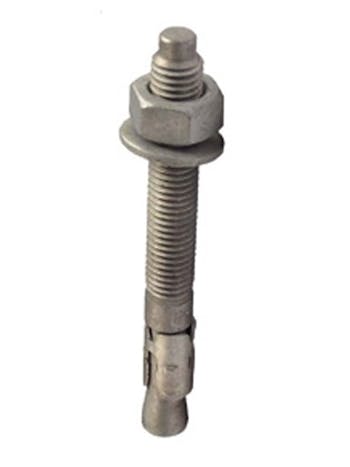

M12 x 100 Galvanised Through Bolts. Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Sold in pairs.
M12 x 60 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.
M12 x 75 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.
A plastic stop end for use in the end of tubes. This stop end cap can be used in either medium or heavy gauge tube. This is only a friction fit and for a more permanent fix an adhesive is recommended.
A plastic stop end for use in the end of tubes. This stop end cap can be used in either medium or heavy gauge tube. This is only a friction fit and for a more permanent fix an adhesive is recommended.
A plastic stop end for use in the end of tubes. This stop end cap can be used in either medium or heavy gauge tube. This is only a friction fit and for a more permanent fix an adhesive is recommended.

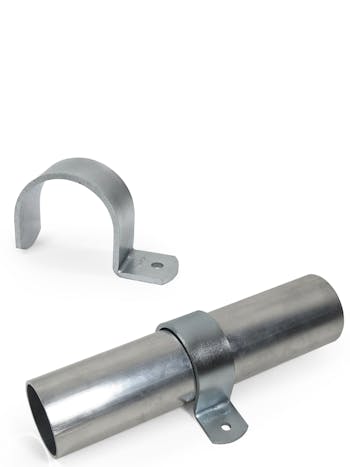

Often used for mounting boards, table or stool tops practically flush with tubes. Fixing holes are 6mm diameter. The tube cannot be joined within the fitting.
A plastic stop end for use in the end of tubes. This stop end cap can be used in either medium or heavy gauge tube. This is only a friction fit and for a more permanent fix an adhesive is recommended.

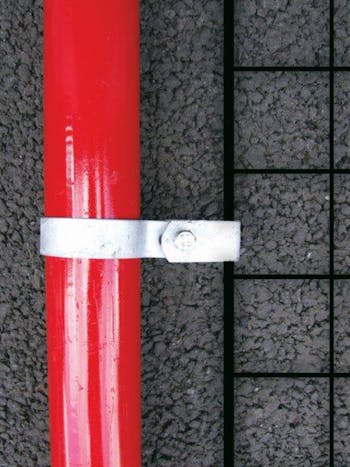

Single location weldmesh panel clip. The slotted design of the panel clip enables adjustment in the location of the mesh panels. Supplied with M6 x 30mm long nut and bolt. This fitting can also be used to locate other materials up to 10mm thick provided the safety saddle is removed.
M12 x 100 Galvanised Ankerbolts (Thunderbolts). Suitable for fixing down handrail base plate fittings such as for 132, 144, 145, 232, 246, 247 & 251 (not for sizes 26.9mm/60.3mm). Image shows pair but priced individual.
Double location weldmesh panel clip. The slotted design of the panel clip enables adjustment in the location of the mesh panels. Supplied with M6 x 30mm long nut and bolt. This fitting can also be used to locate other materials up to 10mm thick provided the safety saddle is removed.
Our Threaded Tube inserts are designed for quick easy installation allowing you to cap off the end of the tube whilst forming a thread at the bottom for adjustable feet.

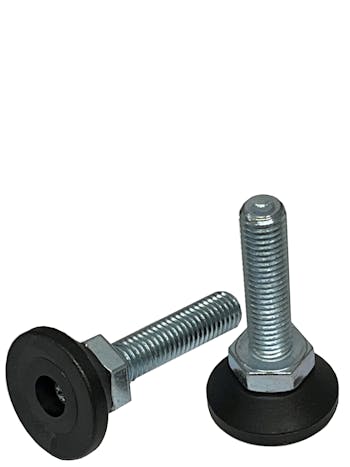

Non - tilt feet adjusters for furniture, merchandising and general light duty applications.
Pozi socket in base for automated assembly.
Non - tilt feet adjusters for furniture, merchandising and general light duty applications.
Pozi socket in base for automated assembly.

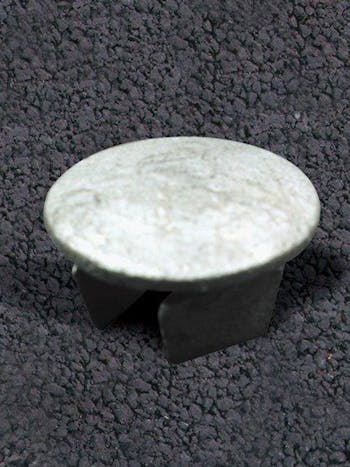

This Key Clamp fitting is a metal stop end cap for sealing the open ends of tubes. This Key Clamp fitting can be used only be used on medium (3.2) weight tube. This Key Clamp fitting is a drive in fit that is difficult to remove without the need for adhesive. For a plastic alternative use the Pipeclamp fitting 133.
Hexagonal key. The allen key is the only tool required to tighten up a Pipeclamp fitting. The use of the dual ratchet Pipeclamp is recommended to achieve the required torque.
Hexagonal key. The allen key is the only tool required to tighten up a Pipeclamp fitting. The use of the dual ratchet Pipeclamp is recommended to achieve the required torque.
