Open Steel Grating

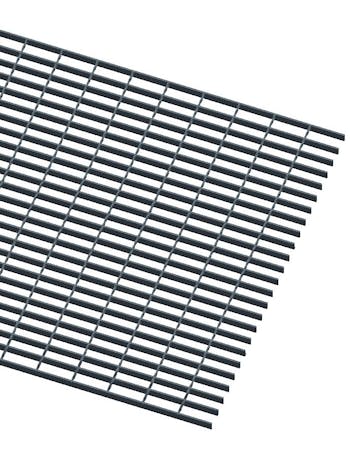

Open Steel Grating Standard Panels with '41/100 pitch' openings/centres, supplied in 6M x 1M panels Self Colour.

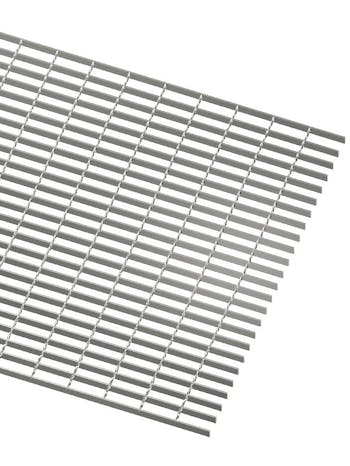

Open Steel Grating Standard Panels with '41/100 pitch' openings/centres, supplied in 6M x 1M panels Galvanised.
Open Steel Grating Standard Panels with '41/50 pitch' openings/centres, supplied in 6M x 1M panels Galvanised.

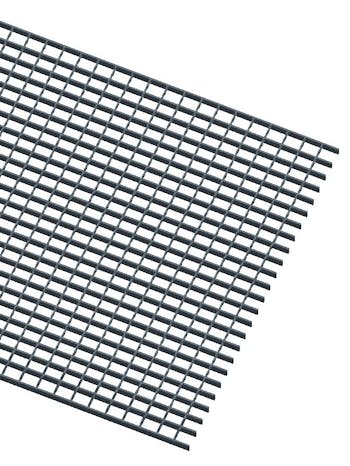

Open Steel Grating Standard Panels with '41/50 pitch' openings/centres, supplied in 6M x 1M panels Self Colour.

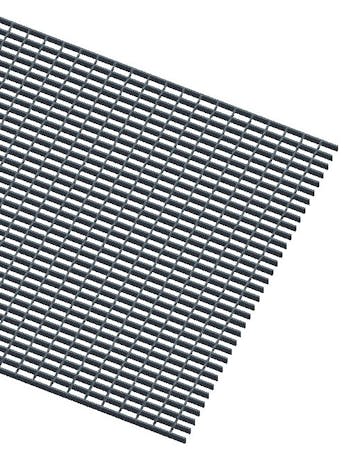

Open Steel Grating Standard Panels with '30/50 pitch' openings/centres, supplied in 6M x 1M panels Self Colour.

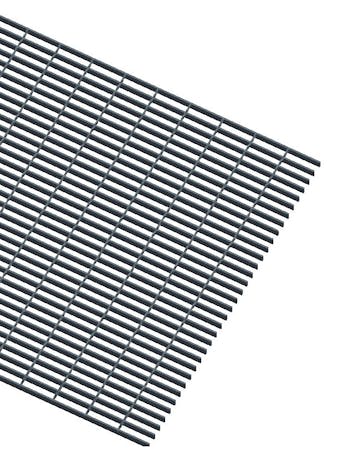

Open Steel Grating Standard Panels with '30/100 pitch' openings/centres, supplied in 6M x 1M panels Self Colour.

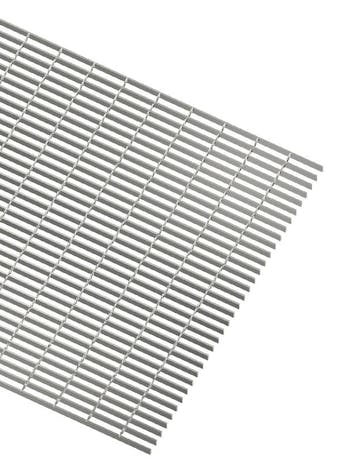

Open Steel Grating Standard Panels with '30/100 pitch' openings/centres, supplied in 6M x 1M panels Galvanised.

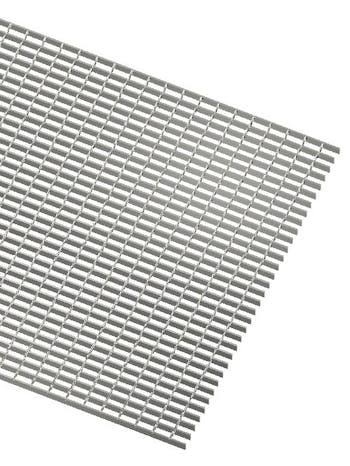

Open Steel Grating Standard Panels with '30/50 pitch' openings/centres, supplied in 6M x 1M panels Galvanised.

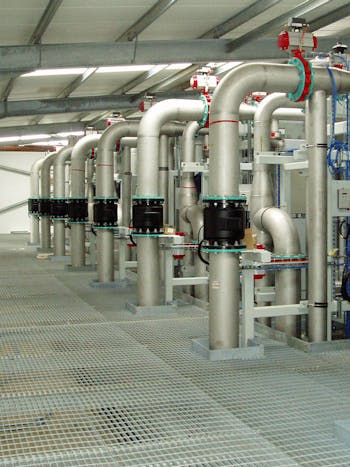

Open Steel Grating Fabricated Flooring to suit any shape/area in any type(pitch, depth and thickness) from our standard panel ranges. Cut to size, shaped and notched if and where required, banded(re-edged) and supplied in Self Colour or Galvanised Finish. Please download, print and complete the order enquiry form(below) to place your order. Or you can email us drawings/sketches and we can work out your flooring layout and costs.

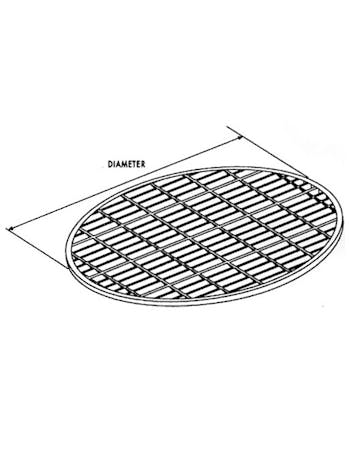

Open Steel Grating Fabricated Circular Panels fabricated in any type(pitch, depth and thickness) from our standard panel ranges. Cut to size, banded(re-edged) and supplied in Self Colour or Galvanised Finish. Please download, print and complete the order enquiry form(below) to place your order.

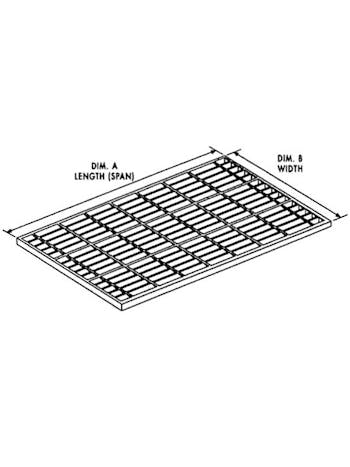

Open Steel Grating Fabricated Rectangular or Square Panels fabricated in any type(pitch, depth and thickness) from our standard panel ranges. Cut to size, banded(re-edged) and supplied in Self Colour or Galvanised Finish. Please download, print and complete the order enquiry form(below) to place your order.
Global Walkway offer an extensive range of Open Steel 'Forge-Welded' Gratings. Widely used in many industries such as; chemical and water treatment plants, offshore and petrochemical plants, factory mezzanines, racking and conveyor systems. Forge-Welded Gratings are regarded as the industry standard and one of the most commonly used flooring products manufactured.
Gratings are fully resistance welded, by creating heat at the metal intersection points of square or round cross bars and flat bearing bars. The resistance welding process produces gratings of high stability, maximum strength and optimal load distribution.
Application
Open Steel 'Forge-Welded' Gratings are used in a wide range of industries for many applications such as; Mezzanines, Walkways, Platforms, Staircases, Ramps, Racking and Conveyor Systems, Facades and Fencing and many more applications.
Key Product Advantages
The unique resistance welding process produces gratings of high stability, maximum strength and optimal load distribution. The open steel apertures provide excellent drainage and high slip resistance. Also the top surface of the load bars can be supplied with a machined serrated finish to give superior slip resistance. Minimal maintenance and low installation costs make it very cost efficient.
Some of the most common bar arrangements(pitch) shown below:
Other pitch's available upon request such as 21/100, 34/100 and 34/38.
Availability
Available in various depths, thicknesses and with plain or serrated top surface. In addition, a range of smaller aperture mesh sizes gives the added safety feature of stopping objects from passing between the bars and increased areas of underfoot contact. Materials available are Mild Steel Self Colour, Galvanised or Stainless Steel in various grades. Grating comes in 6 metre x 1 metre panels as standard or alternatively we can cut and fabricate to your specification for immediate installation.
Our technical staff are available to discuss your project or applications with you.
