DDA Range

DDA Ramp Handrail Side Mount or Slope Mounted Handrail Kit  with MID RAIL. Available as standard in tube size 42.4mm (48.3mm upon request). Tube for upright posts supplied 1070mm long to suit side mounting or flat base mounting (so may require cutting back, we can do in-house if required). Tube for rails supplied as standard length's either 1070mm,1600mm,  2100mm, 3200mm, 4800mm or 6400mm (other lengths available if required).

Expanding internal connector for joining sections of 42.4mm o/d tube, or other DDA fittings as and when required.

Expanding internal connector for joining sections of 42.4mm o/d tube, or other DDA fittings as and when required. Includes extra drilled holes as a fail safe measure.

Elbow Connector for attaching the DDA-3 intermediate bracket or the DDA-4 handrail connector to the 48.3mm o/d upright.

Connector for attaching the DDA-3 intermediate bracket or the DDA-4 handrail connector to the 48.3mm o/d upright.

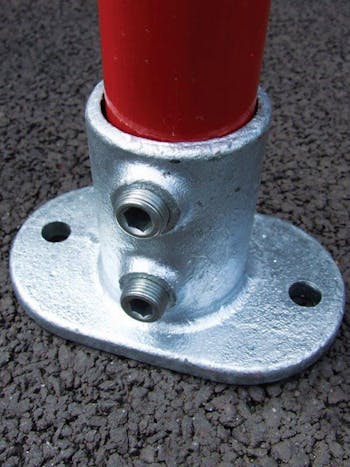

A structural base plate for all level aspects of vertical post support. This key clamp fitting when used as a base plate for guardrailing should always be positioned with the holes across the line of the guardrail to give maximum strength. The holes in the base plate are large enough to enable the use of mechanical or chemical anchor fixings.

Bracket (made from Ductile Iron) for supporting the top or middle rail tube at an upright in conjunction with a 101-4(upright connector). The 42.4mm o/d tube is fixed to the DDA-3 using either 2 x self tapping screws or 2 x pop rivets.

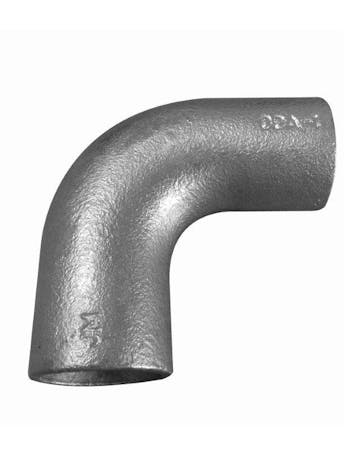

Elbow (made from Ductile Iron) for creating a smooth 90 degree bend in the 42.4mm o/d tube. This bracket is used in conjunction with 2 x 150-3(expanding connector).

Connector (made from Ductile Iron) for attaching the end of the 42.4mm o/d handrail tube at 90° to the 48.3mm o/d upright. This bracket is used in conjunction with 101-4(upright connector) and 150-3(expanding connector).

48.3mm dia. (40NB) Galvanised Tube 1070mm Length (Ideal for making upright posts).

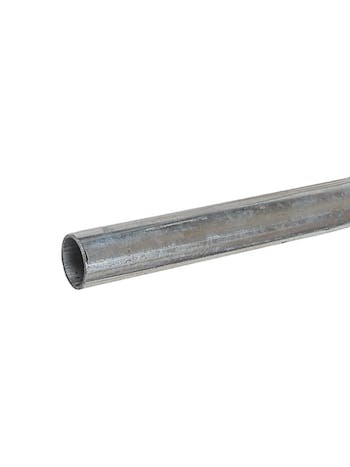

Galvanised Tube1.2m Length (42.4mm, 32NB).

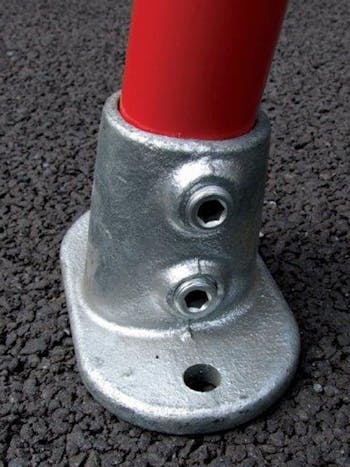

An adjustable structural base fitting for the vertical. The design of this Key Clamp fitting will only allow it to be installed in the correct plane. For correct orientation see details below.

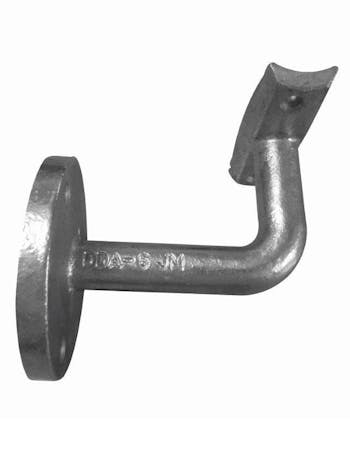

Bracket (made from Ductile Iron) for supporting the 42.4mm o/d handrail tube to a wall. The 42.4mm o/d tube is fixed to the DDA03 using either 2 x self tapping screws or 2 x pop rivets.

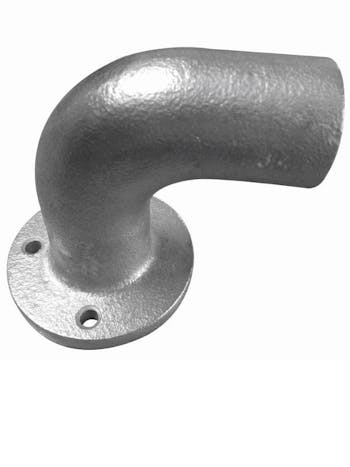

Bracket (made from Ductile Iron) for terminating the 42.4mm o/d handrail tube back to a wall. This bracket is used in conjunction with a 150-3 connector.

Galvanised Tube1.6m Length (42.4mm, 32NB).

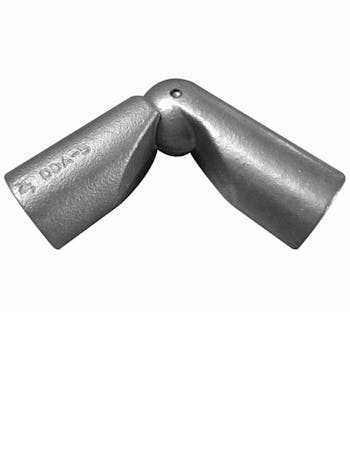

Fitting (made from Ductile Iron) for creating an adjustable bend between the horizontal and the vertical. This bracket is used in conjunction with 2 x 150-3(expanding connector).

Galvanised Tube 2.1M Length (42.4mm, 32NB).

42.4mm dia. (32NB) Galvanised Tube 3.2M Length. Can alternatively be supplied in 6.4M Lengths or cut to any lengths to suit requirements, additional haulage and cutting costs may apply - please contact us for further info.

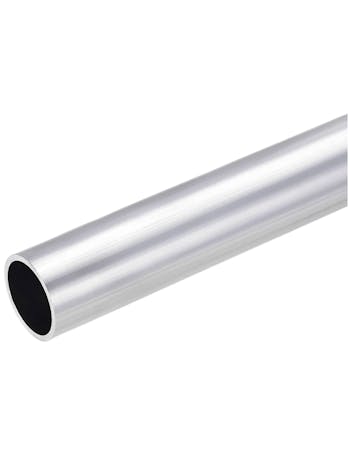

26.9mm dia. x 2.5mm thick - Aluminium round tube 3M length or cut to any lengths to suit requirements, additional haulage and cutting cost may apply - please contact us for further information.

DDA Intermediate Flat Base Post for DDA compliant handrail. Available in upright tube size 48.3mm and 1100mm high overall (rails to suit 42.4mm) from stock or other sizes and heights available to order.

DDA Terminated Flat Base Post for DDA compliant handrail. Available in upright tube size 48.3mm and 1100mm high overall (rails to suit 42.4mm) from stock or other sizes and heights available to order.

DDA Intermediate Side Base Post for DDA compliant handrail. Available in upright tube size 48.3mm and 1100mm high overall (rails to suit 42.4mm) from stock or other sizes and heights available to order.

DDA Terminated Side Base Post for DDA compliant handrail. Available in upright tube size 48.3mm and 1100mm high overall (rails to suit 42.4mm) from stock or other sizes and heights available to order.

DDA Intermediate Slope Base Post for DDA compliant handrail. Available in upright tube size 48.3mm and 1100mm high overall (rails to suit 42.4mm) from stock or other sizes and heights available to order.
