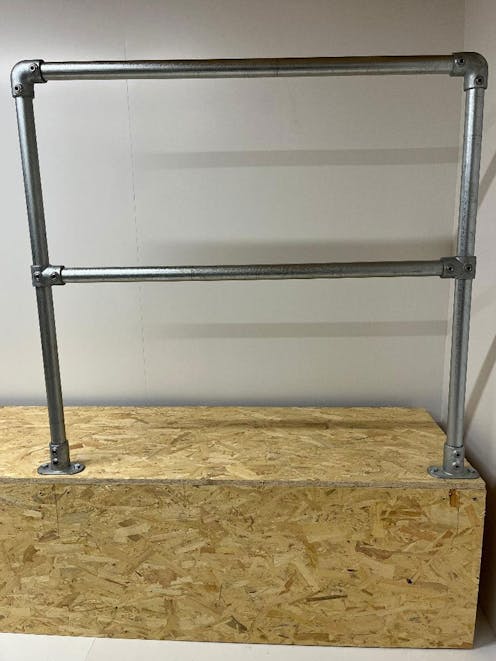

Level Fixed Side Mounted or Floor Mounted with Mid Rail Handrail Kit

From £79.00
(ex. VAT)

Fixed Side Mounted or Floor Mounted with Mid Rail Handrail Kit. Available as standard in tube size 42.4mm (48.3mm upon request). Tube for upright posts supplied 1070mm long to suit side mounting or flat base mounting (so may require cutting back, we can do in-house if required). Tube for rails supplied as standard length's either 1150mm, 2300mm, 3450mm, 4600mm, 5750mm, 6900mm or 8050mm ( other lengths available if required).


THIS PRODUCT IS ALSO AVAILABLE IN BLACK ELECTROPHORETIC COATED TUBE + FITTINGS – PLEASE CONTACT DIRECT FOR AVAILABILITY

Specification

Pipeclamp Component
Handrail Kits
Handrail Length
1150mm (1 bay / 2 uprights), 2300mm (2 bays / 3 uprights), 3450mm (3 bays / 4 uprights), 4600mm (4 bays / 5 uprights), 5750mm (5 bays / 6 uprights), 6900mm (6 bays / 7 uprights), 8050mm (7 bays / 8 uprights),
Pipeclamp Size
3 (42.4mm / 32nb)
Mounting Type
Floor Mounted (132 Type), Side Mounted (146 Type), NO BASE -​ Upright 1.6M post(s) to concrete/sink in,
Material Type
Mild Steel
Finish
Galvanised
Typical Usage
Stairs and Slopes
Rail diameter
42.4mm
