Tees

Viewing 34 of 34.
grid
list
158 4way Cross Key Clamp (26.9mm Black Round)
158 4 way Cross Key Clamp (Round Black)
£6.95
(ex. VAT)

A 4 way cross that enables the vertical to pass through the centre of the fitting with the 4 horizontal tubes joining at 90° to each other. Ideal for structures with multiple verticals. The vertical must remain continuous with the cross rails being cut.

165 Combination Socket (Square 25 x 25 Black)
165 Combination Socket (Square Black)
£7.00
(ex. VAT)

A combination fitting designed for use in the construction of racking systems. The fitting enables the connection of a vertical upright at 90° to 2 horizontal rails, 1 being the tie rail, the other being the load rail. On pallet racking the upright normally has the load rail on the inside, whilst for shelved racking the upright normally has the load rail on the outside.

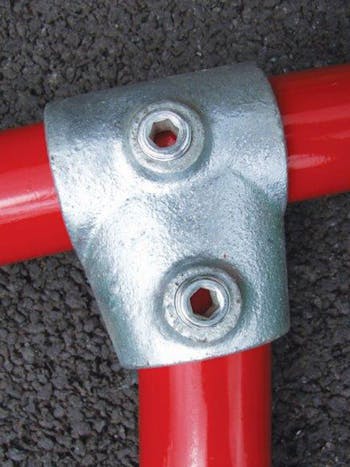

253 Slope (11°- 29°) Short Tee Key Clamp
253 Slope (11°- 29°) Short Tee Key Clamp
£7.13
(ex. VAT)
An adjustable tee connection between two tubes. Used on staircases (11°- 29°) and larger gradient guardrail between verticals and top rails or the mid/lower rails to an end vertical. This fitting cannot be used to joint tubes in the short tee. For this the Key Clamp fitting 255 long tee should be used.
130 Adjustable Cross
130 Adjustable Cross Key Clamp
From £7.39
(ex. VAT)
Freely adjustable cross between 30° and 45°. Typical use is as a cross connection on angled mid/lower rails on steeper slopes or stairs with the upright remaining vertical. The upright must remain continuous with the cross rails being cut. Not recommended for use on the top of the vertical.
129 Adjustable Tee Key Clamp (42.4mm Round Black)
129 Adjustable Tee Key Clamp (Round Black)
£7.50
(ex. VAT)

Freely adjustable tee between 30° and 60°. Typical use is a tee connection on angled top rails on steeper slopes or stairs with the upright remaining vertical. This fitting can also be used for bracing on structures. This fitting has no ability to join tubes. An alternative for this situation is the Key Clamp fitting 127.

104 Long Tee (Square 25 x 25 Black)
104 Long Tee (Square Black)
From £7.90
(ex. VAT)

A 90 deg. tee connection between 2 tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail. This Key Clamp fitting can be used to join tubes in the top of the twin grubscrew long tee.

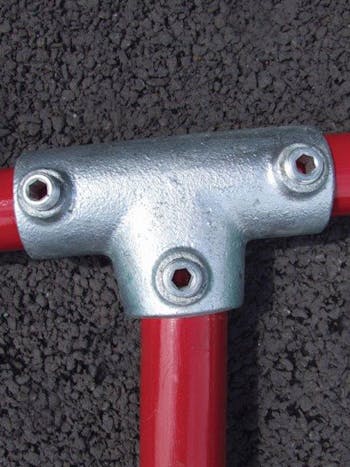

255 Slope (11°- 29°) Long Tee Key Clamp
255 Slope (11°- 29°) Long Tee Key Clamp
£8.33
(ex. VAT)
An adjustable tee connection between two tubes. Used on staircases (11°- 29°) and larger gradient guardrail between verticals and top rails. This fitting can be used to joint tubes in the long tee.
3way Corner with Lug ( Square 25 x 25 Black)
116 3way Corner with Lug (Square Black)
£8.35
(ex. VAT)
158 4way Cross Key Clamp ( Square 25 x 25 Black)
158 4way Cross Key Clamp (Square Black)
£8.35
(ex. VAT)

A 4 way cross that enables the vertical to pass through the centre of the fitting with the 4 horizontal tubes joining at 90° to each other. Ideal for structures with multiple verticals. The vertical must remain continuous with the cross rails being cut.

130 Adjustable Cross Key Clamp (42.4mm Round Black)
130 Adjustable Cross Key Clamp (Round Black)
£9.25
(ex. VAT)

Freely adjustable cross between 30° and 45°. Typical use is as a cross connection on angled mid/lower rails on steeper slopes or stairs with the upright remaining vertical. The upright must remain continuous with the cross rails being cut. Not recommended for use on the top of the vertical.
