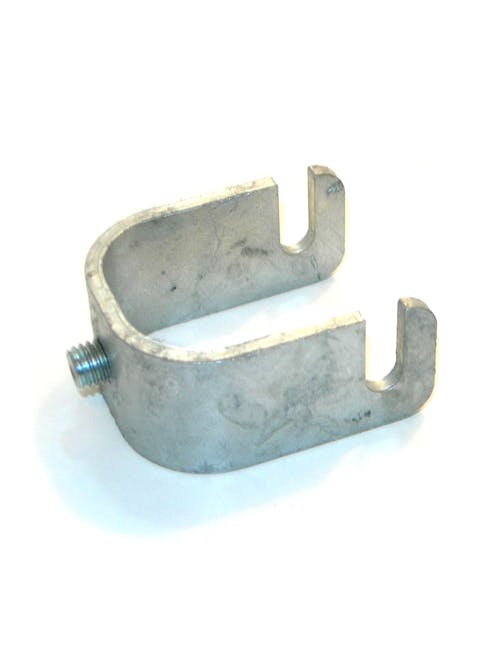

Kick Clamp Bracket (Pressed version)

From £3.50
(ex. VAT)

Buy more and save more!

Buy 100+ save 5%
Buy 300+ save 10%
Buy 500+ save 15%

Kick Plate Clamps are a new system for fixing kick flat and toe board to handrail standards.

Full description

Description

Kick Clamps are available to suit the following tubular shanks(posts): 33.7 o/d (25NB), 42.4 o/d (32NB), 48.3 o/d (40NB) and also the following solid shanks(posts): 32 dia., 38 dia. and 45 dia.

Flat Base Fixing Method Side Palm Fixing Method

Fix Kick Clamps at every standard

on top of the kick flat and clamp

down against the base plate of the

standard

Alternate the Kick Clamps, fixing them on

top and bottom of the kick flat bars.

On shorter runs or for extra security, use

two KickKlamps per standard, one on top

and one on the bottom of the kick flat.

Kick Clamp Bracket
CODE SIZE (MM)
K25 33.7 o/d (25NB)
K40 42.4 o/d (32NB), 48.3 o/d (40NB)

Specification

Kick Clamp Size
K25 to suit 25NB (33.7mm o/d), K40 to suit 32NB (42.4mm) or 40NB(48.3mm o/d),
Material Type
Mild Steel
Finish
Galvanised
