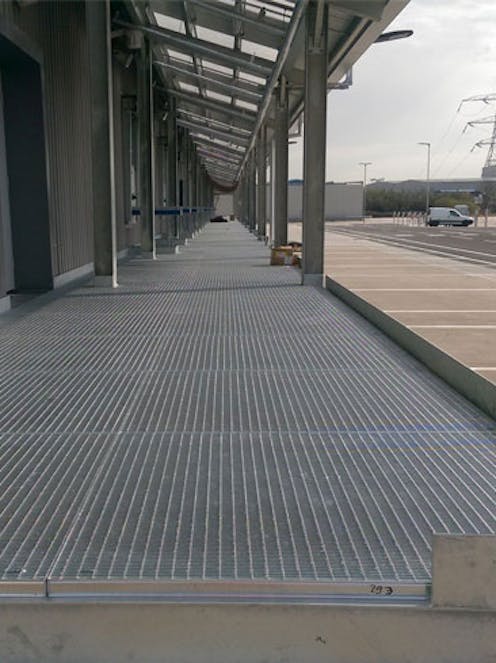

PL Fabricated Flooring

Call for price

Pressure Locked Grating Fabricated Flooring to suit any shape/area in any type(pitch, depth and thickness) from our standard panel ranges. Cut to size, shaped and notched if and where required, banded(re-edged) and supplied in Self Colour, Galvanised Finish or Stainless Steel. Please download, print and complete the order enquiry form(below) to place your order. Or you can email us drawings/sketches and we can work out your flooring layout and costs.

Full description

Description

In house CAD detailing and flooring layouts available. Basic example shown below.

Floor layout to suit 1.5M x 4.265M area. Made in 4 pieces, 3no. standard width panels and 1no. make up panel to finish.

fabd grating layout

Most Common Available Options/Sizes: Any combination of below centres(pitch) e.g - 33/33 or 33/11. Other depths and pitch arrangements available upon request.

Bearing Bar Size (height/depth x thickness) Bearing Bar Pitch  (Openings/Centres)  Transverse Bar Pitch  (Openings/Centres)
20x2 11, 22 or 33 11, 22 or 33
20x3 11, 22 or 33 11, 22 or 33
25x2 11, 22 or 33 11, 22 or 33
25x3 11, 22 or 33 11, 22 or 33
30x2 11, 22 or 33 11, 22 or 33
30x3 11, 22 or 33 11, 22 or 33
40x2 11, 22 or 33 11, 22 or 33
40x3 11, 22 or 33 11, 22 or 33

Please download, print and complete the order enquiry form(further below) to place your order.

Or you can email us drawings/sketches and we can work out your flooring layout and costs.

Specification

Finish
Self Colour (Black), Galvanised,
Material Type
Stainless Grade 304 (Internal Use), Stainless Grade 316 (External Use), Mild Steel,
Serrated Flat Bars
Yes, No,
