PL Fabricated Circular Panels

Call for price

Pressure Locked Grating Fabricated Circular Panels fabricated in any type(pitch, depth and thickness) from our standard panel ranges. Cut to size, banded(re-edged) and supplied in Self Colour, Galvanised Finish or Stainless Steel. Please download, print and complete the order enquiry form(below) to place your order.

Full description

Description

NOTE - When ordering please include the following information:- Bearing Bar Depth and thickness e.g 25x2, Bearing Bar/Cross Bar arrangement(pitch) e.g. 33/33, Diameter, Finish and Quantity.

Please download, print and complete the order enquiry form(further below) to place your order.

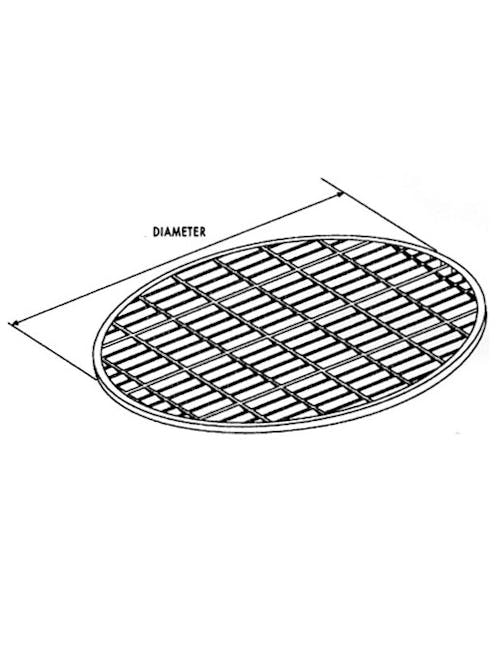

fabd circ grating

Most Common Available Options/Sizes: Any combination of below centres(pitch) e.g - 33/33 or 33/11. Other depths and pitch arrangements available upon request.

Bearing Bar Size (height/depth x thickness) Bearing Bar Pitch  (Openings/Centres)  Transverse Bar Pitch  (Openings/Centres)
20x2 11, 22 or 33 11, 22 or 33
20x3 11, 22 or 33 11, 22 or 33
25x2 11, 22 or 33 11, 22 or 33
25x3 11, 22 or 33 11, 22 or 33
30x2 11, 22 or 33 11, 22 or 33
30x3 11, 22 or 33 11, 22 or 33
40x2 11, 22 or 33 11, 22 or 33
40x3 11, 22 or 33 11, 22 or 33

Please download, print and complete the order enquiry form(just below) to place your order.

Specification

Finish
Self Colour (Black), Galvanised,
Material Type
Stainless Grade 304 (Internal Use), Stainless Grade 316 (External Use), Mild Steel,
Serrated Flat Bars
Yes, No,
