PL Standard Panels

Call for price

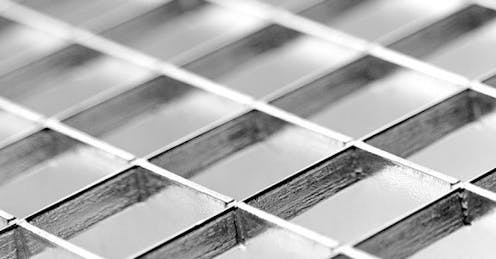

Pressure Locked Grating Standard Panels come in various openings('pitch'), supplied in 3M x 1M panels Self Colour, Galvanised Finish or Stainless Steel.

Full description

Description

Most Common Available Options/Sizes: Any combination of below centres(pitch) e.g - 33/33 or 33/11. Other depths and pitch arrangements available upon request.

Bearing Bar Size (height/depth x thickness) Bearing Bar Pitch  (Openings/Centres)  Transverse Bar Pitch  (Openings/Centres)
20x2 11, 22 or 33 11, 22 or 33
20x3 11, 22 or 33 11, 22 or 33
25x2 11, 22 or 33 11, 22 or 33
25x3 11, 22 or 33 11, 22 or 33
30x2 11, 22 or 33 11, 22 or 33
30x3 11, 22 or 33 11, 22 or 33
40x2 11, 22 or 33 11, 22 or 33
40x3 11, 22 or 33 11, 22 or 33

Specification

Finish
Self Colour (Black), Galvanised,
Material Type
Stainless Grade 304 (Internal Use), Stainless Grade 316 (External Use), Mild Steel,
Serrated Flat Bars
Yes, No,
