Stainless Steel Glass Clamp Round Type

From £7.14
(ex. VAT)

Buy more and save more!

Buy 48+ save 5%
Buy 96+ save 10%
Buy 192+ save 15%

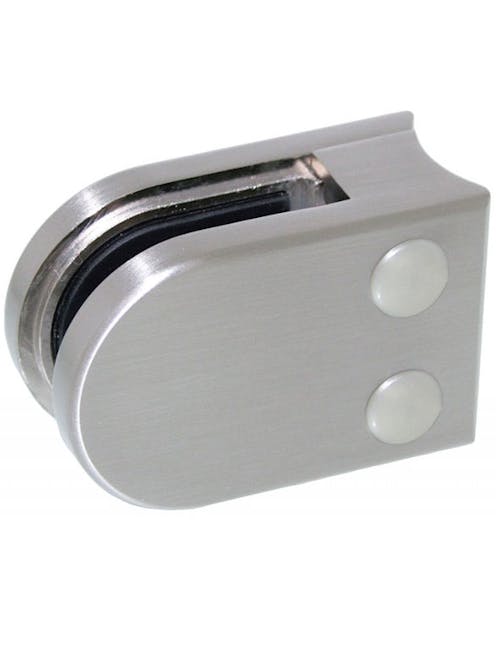

Stainless Steel Glass Clamp Round Type for 42.4mm or 48.3mm tube and to suit 6 to 10mm Glass in 304 or 316 grade stainless.

Full description

Description

Stainless steel glass clamps for a glazed balustrade system. Produced to a high quality satin finish they are tested to extremely high levels of safety and they are available for both interior and exterior use.

Compatible with 6 to 10mm thick glass, clamps can be used over any length of installation as well as slopes and staircases.

Simple to install using M8 X 20 stainless steel Hex Head Cap Screw.

CODE SIZE (MM)
304A GCR 42.4D X 6
304B GCR 42.4D X 8
304C GCR 42.4D X 10
304D GCR 48.3D X 6
304E GCR 48.3D X 8
304F GCR 48.3D X 10
316A GCR 42.4D X 6
316B GCR 42.4D X 8
316C GCR 42.4D X 10
316D GCR 48.3D X 6
316E GCR 48.3D X 8
316F GCR 48.3D X 10

Please note: If using glass clamps in any installation where the glass is fixed to the outside of a staircase or balcony and overhanging, then security pins and drilled glass must be used. Alternatively, use our square glass clamps which come with a bottom location plate.

Specification

Balustrade Component
Glass Clamps
BALUSTRADE SIZES
42.4D X 6, 42.4D X 8, 42.4D X 10, 48.3D X 6, 48.3D X 8, 48.3D X 10,
Material Type
Stainless Grade 304 (Internal Use), Stainless Grade 316 (External Use),
