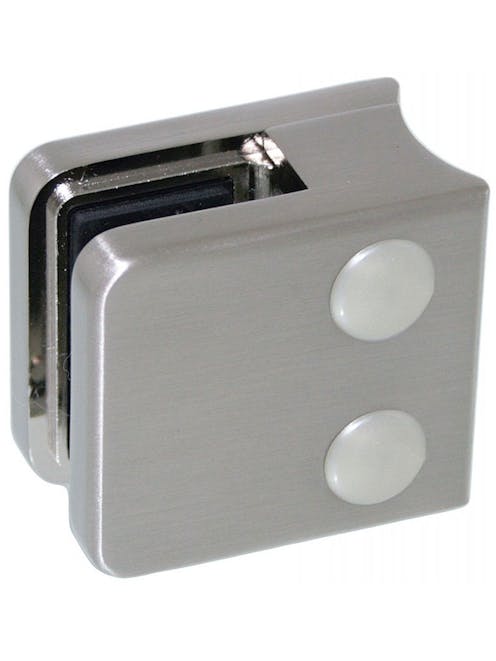

Stainless Steel Glass Clamp Square Type Small

From £10.74
(ex. VAT)

Buy more and save more!

Buy 48+ save 5%
Buy 96+ save 10%
Buy 192+ save 15%
Stainless Steel Glass Clamp Square Type Back Small to suit 42.4mm upright post and 6 to 10mm Glass in 304 or 316 grade stainless.

Full description

Description

Stainless steel glass clamps for a glazed balustrade system. Produced to a high quality satin finish they are tested to extremely high levels of safety and they are available for both interior and exterior use.

Compatible with 6 to 10mm thick glass, clamps can be used over any length of installation as well as slopes and staircases.

Simple to install using M8 X 20 stainless steel Hex Head Cap Screw.

CODE SIZE (MM)
304A GCSS 42.4D X 6
304B GCSS 42.4D X 8
304C GCSS 42.4D X 10
316A GCSS 42.4D X 6
316B GCSS 42.4D X 8
316C GCSS 42.4D X 10

Please note: If using glass clamps in any installation where the glass is fixed to the outside of a staircase or balcony and overhanging, then security pins and drilled glass must be used. Alternatively, use our larger type square glass clamps which come with a bottom location plate.

Specification

Balustrade Component
Glass Clamps
BALUSTRADE SIZES
42.4D X 6, 42.4D X 8, 42.4D X 10,
Material Type
Stainless Grade 304 (Internal Use), Stainless Grade 316 (External Use),
