Tubular Standards Horizontal

Call for price

Tubular Standards Horizontal for use on straight runs available from stock or manufactured to meet specific requirements. Please download, print and complete the order enquiry form(below) to place your order.

Full description

Description

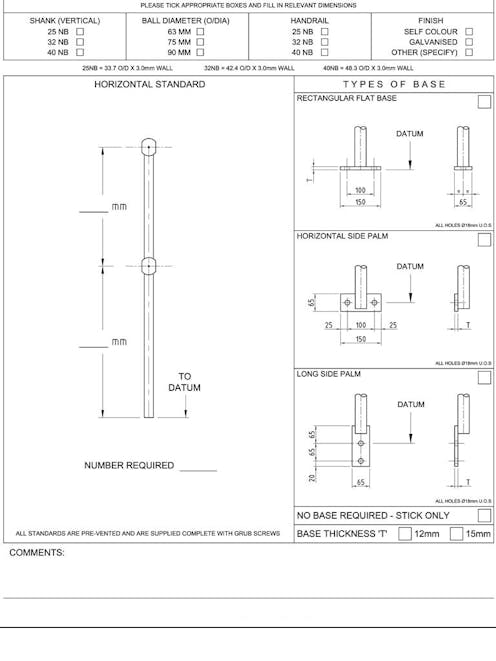

When ordering please include the following information:- Upright(shank) diameter, Ball diameter, Handrail(cross rails) diameter, Finish, Quantity, Type of base and measurements(ball/tail centres) as shown above and on the order enquiry form(to download below).

Available Options/Sizes:

Upright(Shank) Ball Diameter To suit tube/rail size
33.7mm (25NB) 63mm O.D. 33.7mm (25NB)
42.4mm (32NB) 63mm O.D. 33.7mm (25NB)
42.4mm (32NB) 75mm O.D. 33.7mm (25NB)
42.4mm (32NB) 75mm O.D. 42.4mm (32NB)
48.3mm (40NB) 75mm O.D. 33.7mm (25NB)
48.3mm (40NB) 75mm O.D. 42.4mm (32NB)
48.3mm (40NB) 75mm O.D. 48.3mm (40NB)
48.3mm (40NB) 90mm O.D. 48.3mm (40NB)

Please download, print and complete the order enquiry form(below) to place your order.

Specification

Handrail Standard Type
25/63/25 25NB (33.7mm o/d upright and rails), 32/63/25 25NB (42.4mm upright and 33.7mm rails), 32/75/25 25NB (42.4mm upright and 33.7mm rails), 32/75/32 32NB (42.4mm o/d upright and rails), 40/75/25 25NB (42.4mm upright and 33.7mm rails), 40/75/32 25NB (48.3mm upright and 33.7mm rails), 40/75/40 40NB (48.3mm o/d upright and rails), 40/90/40 40NB (48.3mm o/d upright and rails),
Base type
Flat Base, Side Palm, Long Palm,
Material Type
Mild Steel
Finish
Self Colour (Black), Galvanised,
Upright diameter
33.7mm, 42.4mm, 48.3mm,
Rail diameter
33.7mm, 42.4mm, 48.3mm,
