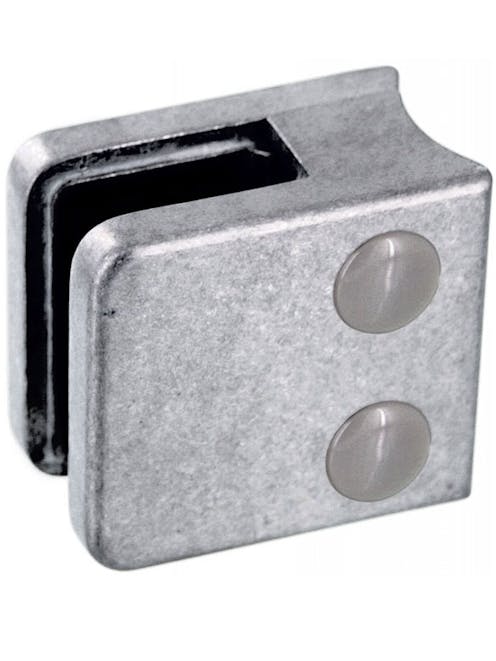

Unfinished Glass Clamp Square Type

£6.95
(ex. VAT)

Buy more and save more!

Buy 48+ save 5%
Buy 96+ save 10%
Buy 192+ save 15%
Unfinished Glass Clamp Square Type for 42.4mm or 48.3mm tube and to suit 8 to 12mm Glass. Powder coating available on request.

Full description

Description

Unfinished glass clamps for a glazed balustrade system. Produced to a high quality finish perfect for powder coating they are tested to extremely high levels of safety and they are available for both interior and exterior use.

Compatible with 8 to 12mm thick glass, clamps can be used over any length of installation as well as slopes and staircases.

Simple to install using M8 X 20 stainless steel Hex Head Cap Screw.

CODE SIZE (MM)
ZTB GCS 42.4D X 8
ZTC GCS 42.4D X 10
ZTD GCS 42.4D X 12
ZTF GCS 48.3D X 8
ZTG GCS 48.3D X 10
ZTH GCS 48.3D X 12

Please note: If using glass clamps in any installation where the glass is fixed to the outside of a staircase or balcony and overhanging, then security pins and drilled glass must be used. Alternatively, use this type of square glass clamps which come with a bottom location plate.

Specification

Balustrade Component
Glass Clamps
BALUSTRADE SIZES
42.4D X 8, 42.4D X 10, 42.4D X 12, 48.3D X 8, 48.3D X 10, 48.3D X 12,
Material Type
Mild Steel
