Black (Electrophoretic coated) Range

Complete locating swivel. Swivel has a travel of approximately 85 from the vertical in each direction.

Key Clamp fitting typical use is on straight and level guardrail for connecting the mid/lower rail to the vertical at a 90 corner.

3 way tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.

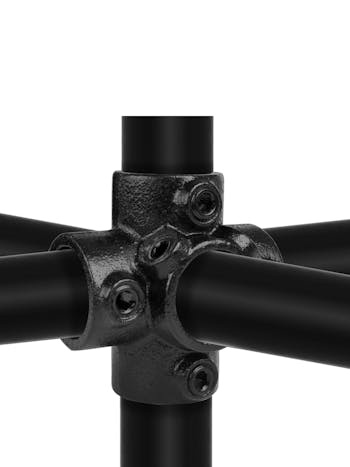

A 4 way cross that enables the vertical to pass through the centre of the fitting with the 4 horizontal tubes joining at 90° to each other. Ideal for structures with multiple verticals. The vertical must remain continuous with the cross rails being cut.

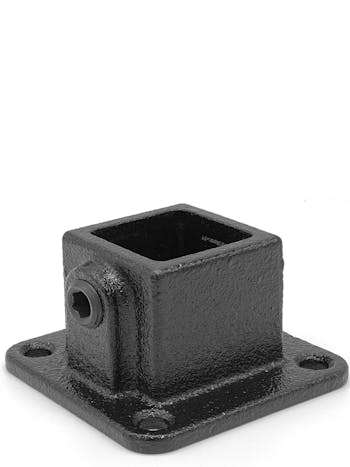

A structural base plate for all level aspects of vertical post support. This key clamp fitting when used as a base plate for guardrailing should always be positioned with the holes across the line of the guardrail to give maximum strength. The holes in the base plate are large enough to enable the use of mechanical or chemical anchor fixings.

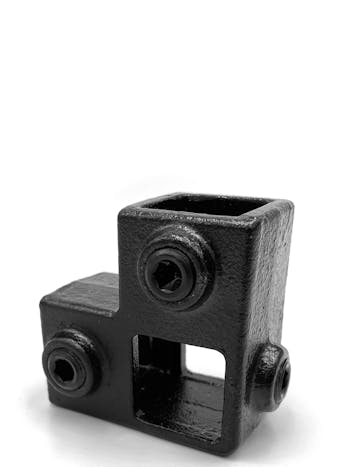

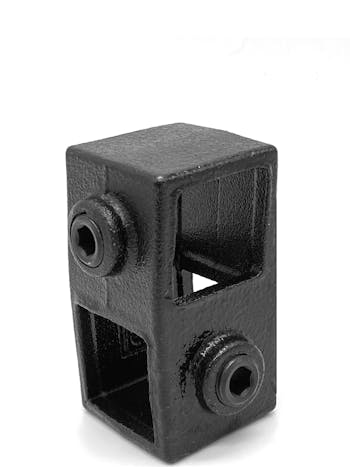

A combination fitting designed for use in the construction of racking systems. The fitting enables the connection of a vertical upright at 90° to 2 horizontal rails, 1 being the tie rail, the other being the load rail. On pallet racking the upright normally has the load rail on the inside, whilst for shelved racking the upright normally has the load rail on the outside.

Key Clamp fitting typical use is to connect the end vertical to the top rail in straight and level guardrail. Can also be used to create a 90 tube bend.

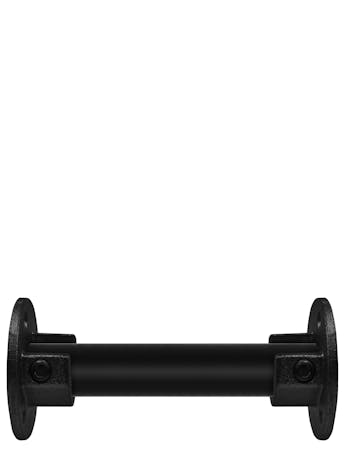

This INLAY version of the 131 type fitting is excellantly suitable as rail holder. Supplied as a set (left and right version). After you have placed the round wall plates, you can simply insert the tube. Also suitable for temporary removal of a passageway, where the tube can be removed easily and quickly.

Freely adjustable tee between 30° and 60°. Typical use is a tee connection on angled top rails on steeper slopes or stairs with the upright remaining vertical. This fitting can also be used for bracing on structures. This fitting has no ability to join tubes. An alternative for this situation is the Key Clamp fitting 127.

A Variable angle in line connector (110 - 180) Ideally suited for use between the vertical end post and sloping top rail on stair guard railing.

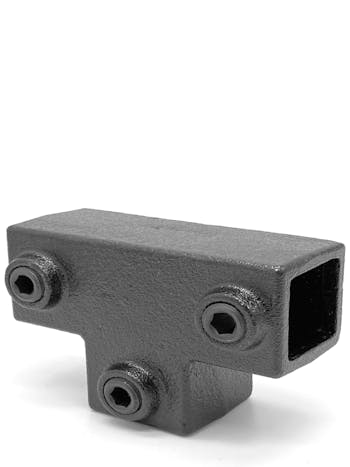

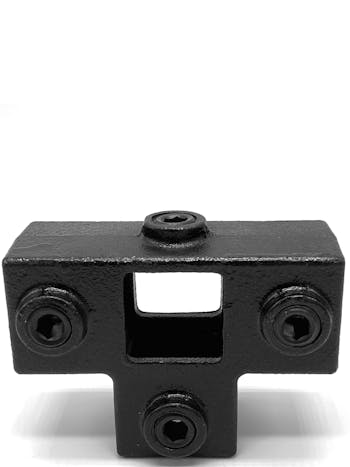

A 90 deg. tee connection between 2 tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail. This Key Clamp fitting can be used to join tubes in the top of the twin grubscrew long tee.

A 4 way cross that enables the vertical to pass through the centre of the fitting with the 4 horizontal tubes joining at 90° to each other. Ideal for structures with multiple verticals. The vertical must remain continuous with the cross rails being cut.

With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.

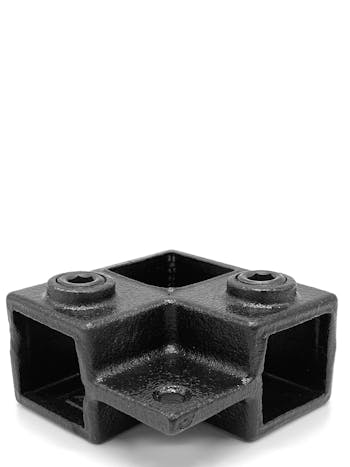

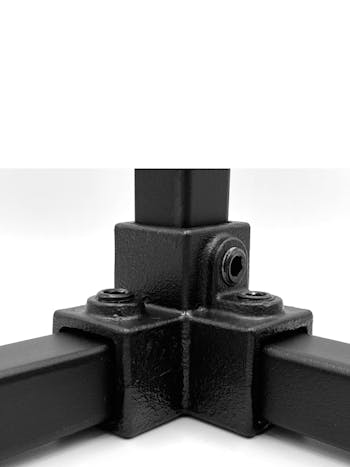

A 3 way enclosed 90 corner joint. Typical use is on straight and level guardrail at a 90 corner where an upright is in position. This Key Klamp fitting can also be used to create enclosed corner joints in other square structures such as benches etc.

Freely adjustable cross between 30° and 45°. Typical use is as a cross connection on angled mid/lower rails on steeper slopes or stairs with the upright remaining vertical. The upright must remain continuous with the cross rails being cut. Not recommended for use on the top of the vertical.

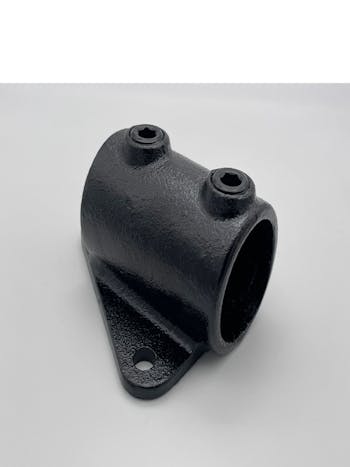

Key Clamp Structural flush side palm base fixing for fixing guardrailing to wall steps or ramps etc. The flush design enables posts to be tight to the structure. The tube is unable to pass through the fitting. Should this be required then the base must be reamed out. If the base is reamed out the bottom fixing will become redundant.
