Black (Electrophoretic coated) Range

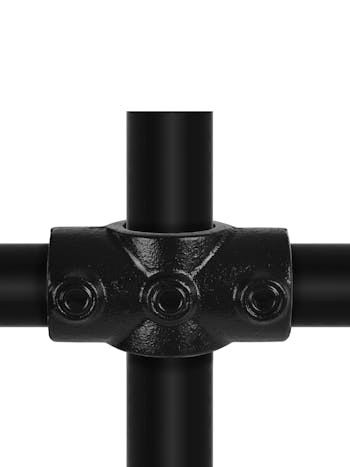

A Key Clamp 90 joint between a vertical and two horizontals. Typical use on straight and level guardrail to connect the mid/lower rails to the upright. The vertical must remain continuous with cross rails cut.

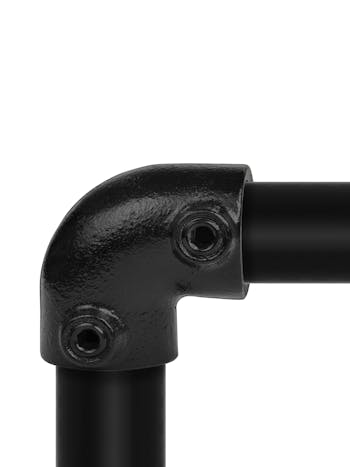

Key Clamp fitting typical use is to connect the end vertical to the top rail in straight and level guardrail. Can also be used to create a 90 tube bend.

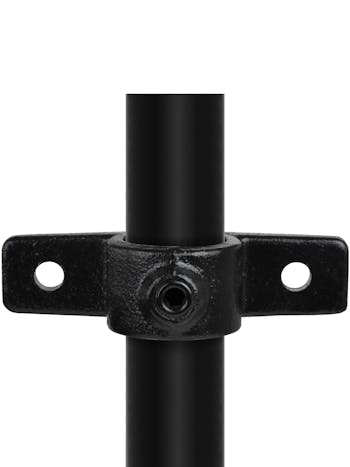

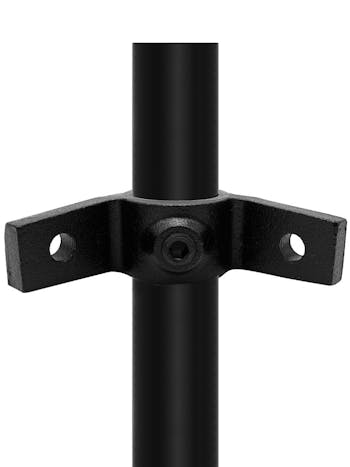

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

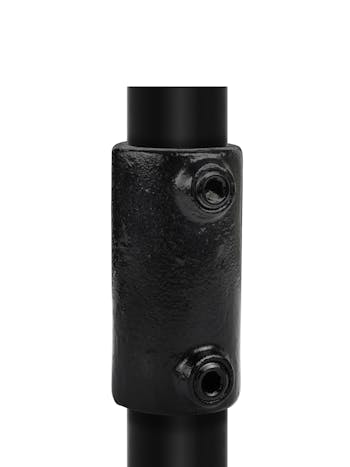

An inline external tube connector for joining two tubes of the same diameter.

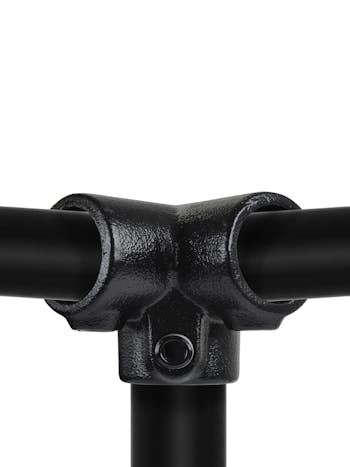

A 3 way enclosed 90 corner joint. Typical use is on straight and level guardrail at a 90 corner where an upright is in position. This Key Klamp fitting can also be used to create enclosed corner joints in other square structures such as benches etc.

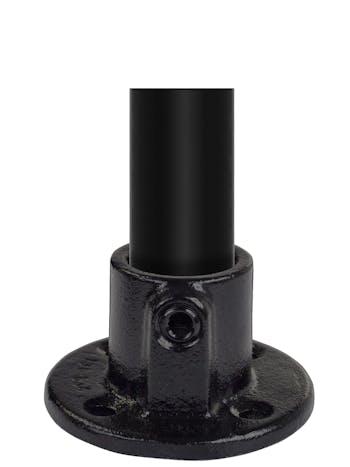

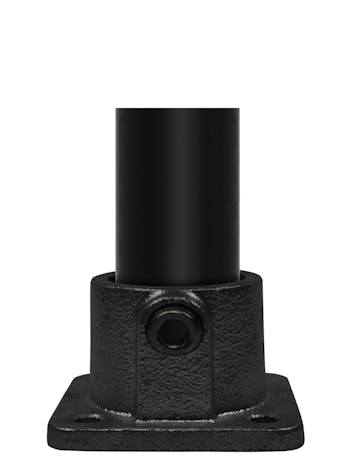

With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.

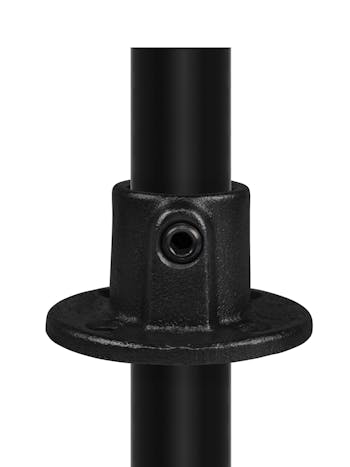

This THROUGH version of the 131 type fitting is suitable for constructions where the pipe has to run through. Suitable for the use of e.g. intermediate shelves.

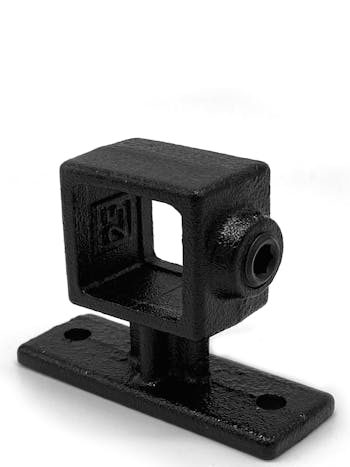

Wall mounting bracket for handrails. Can also be used to tie back structures to wall or to hold kicking plates on a guardrail. This Key Clamp fitting has countersunk holes and is not recommended as a structural fixing. This fitting has no ability to join tubes.
With 4 countersunk holes, this fitting is ideal as a flange to terminate handrail to a wall or other similar application. This key clamp fitting may be used on structures where it is only required as a positional fixing.
A 90 deg. tee connection between two tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail or end/mid rail to the vertical. This Key Clamp fitting cannot be used to join tubes in the top of the short tee.
Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

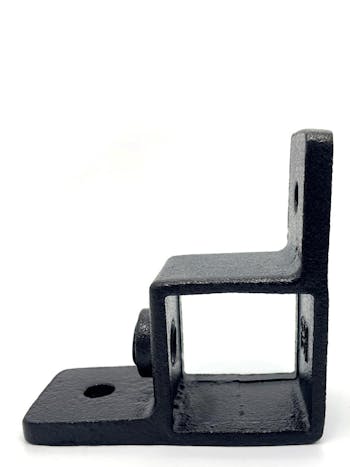

This fitting is designed to be used in conjunction with the “M” fittings and is not generally used on its own. This can be connected to the “M” fitting by either rivet or nut and bolt.

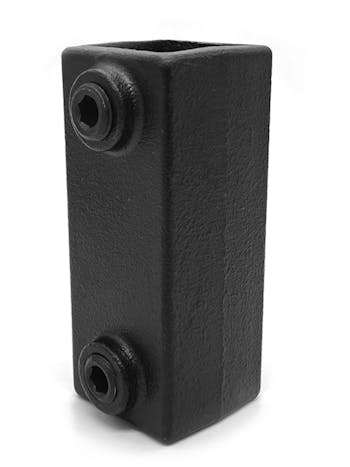

An inline external tube connector for joining two tubes of the same diameter. Supplied in a Electrophoretic Coated finish.

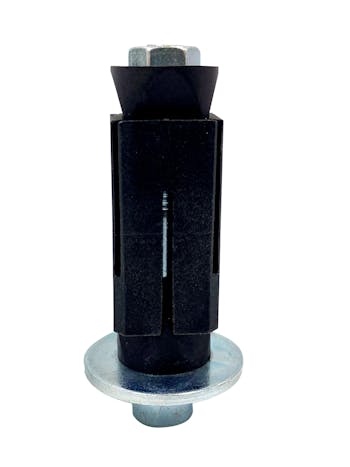

Expanding internal connector for joining sections of 26.9mm o/d tube, or other DDA fittings as and when required.

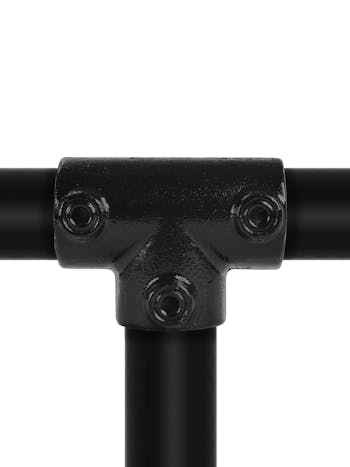

A 90 deg. tee connection between 2 tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail. This Key Clamp fitting can be used to join tubes in the top of the twin grubscrew long tee.
Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors. The tube cannot be joined within the fitting.

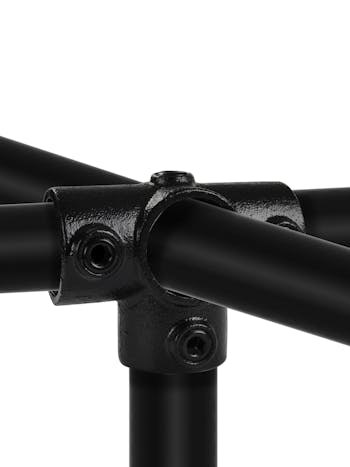

3 way tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.
A 90 deg. tee connection between two tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail or end/mid rail to the vertical. This Key Clamp fitting cannot be used to join tubes in the top of the short tee. For this the Key Clamp fitting 104 Long Tee should be used.
A Key Clamp 90 joint between a vertical and two horizontals. Typical use on straight and level guardrail to connect the mid/lower rails to the upright. The vertical must remain continuous with cross rails cut.
Key Clamp Complete single swivel. The swivel has a travel of approximately 85° from the horizontal in both vertical directions.(Kee Klamp compatible C50)
Our easy to assemble, do it yourself range of tube and fittings are perfect for a wide range of applications.
Black (Electrophoretic coated) Clamp fittings, are black malleable fittings with a black electrophoretic coating finish.
Electrophoretic coating or painting is an industrial process which uses an electric field to deposit particles of paint onto a material, usually metal fabricated products.
This provides a consistent coating which is non-porous, is generally more environmentally friendly than alternative processes and also enables the insides of the clamps to be coated as well as the outside. The coating is water based and non-toxic which dries smooth.
The result is a smooth, semi-gloss finish.
All clamps come supplied with grub screws.
Fittings can be tightened using a standard allen hex key.
And combined with black (Electrophoretic coated) tube, make it the perfect "DIY kit" for many uses including shelving, furniture, signage, structures plus many more.
Availability
We have all the most popular items in stock in size 26.9mm, 33.7mm & 42.4mm available off the shelf, others available upon request.
